SEWAGE SLUDGE TREATMENT PLANT

Making charcoal from sewage sludge, industrial sludge, etc.

sludge carbon
  • certification
    CE/ISO/SGS
    Certificates
  • patent
    15+
    Patents
  • country
    100+
    Countries
  • production
    200+ Sets
    Annual Capacity
  • case
    500+
    Successful Cases

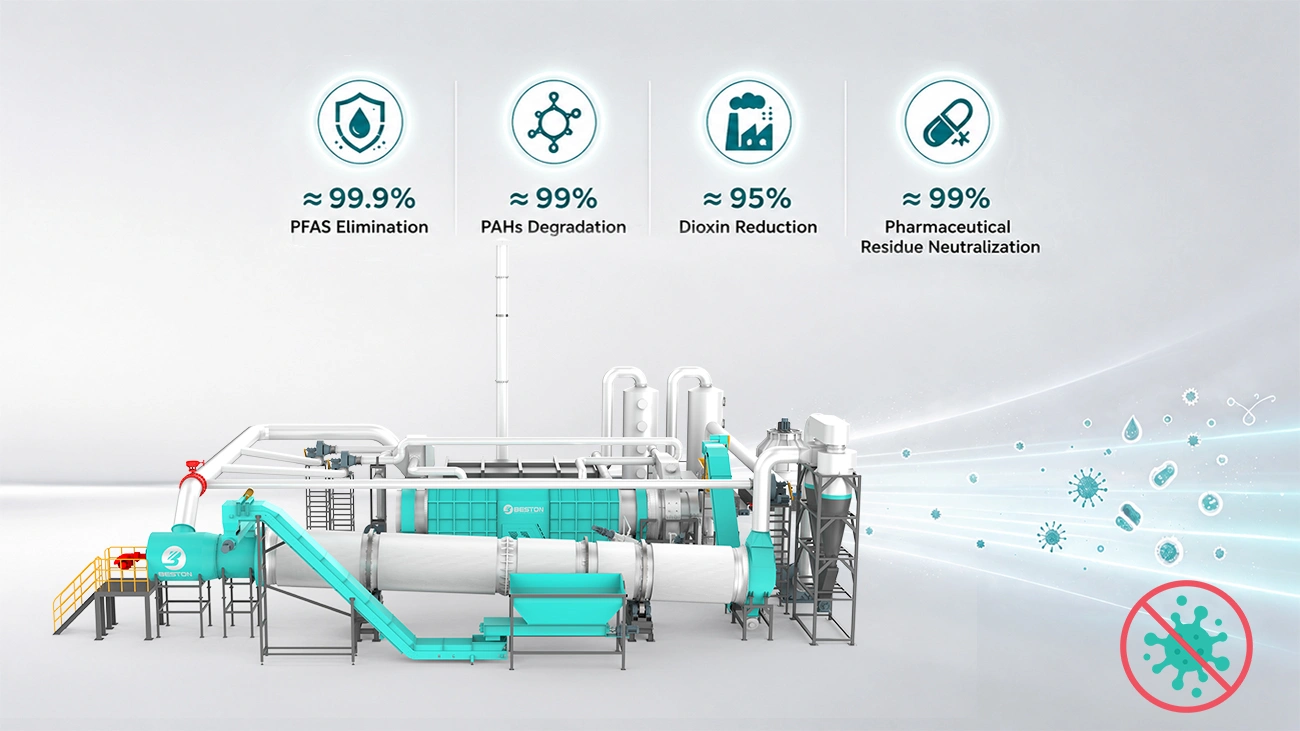

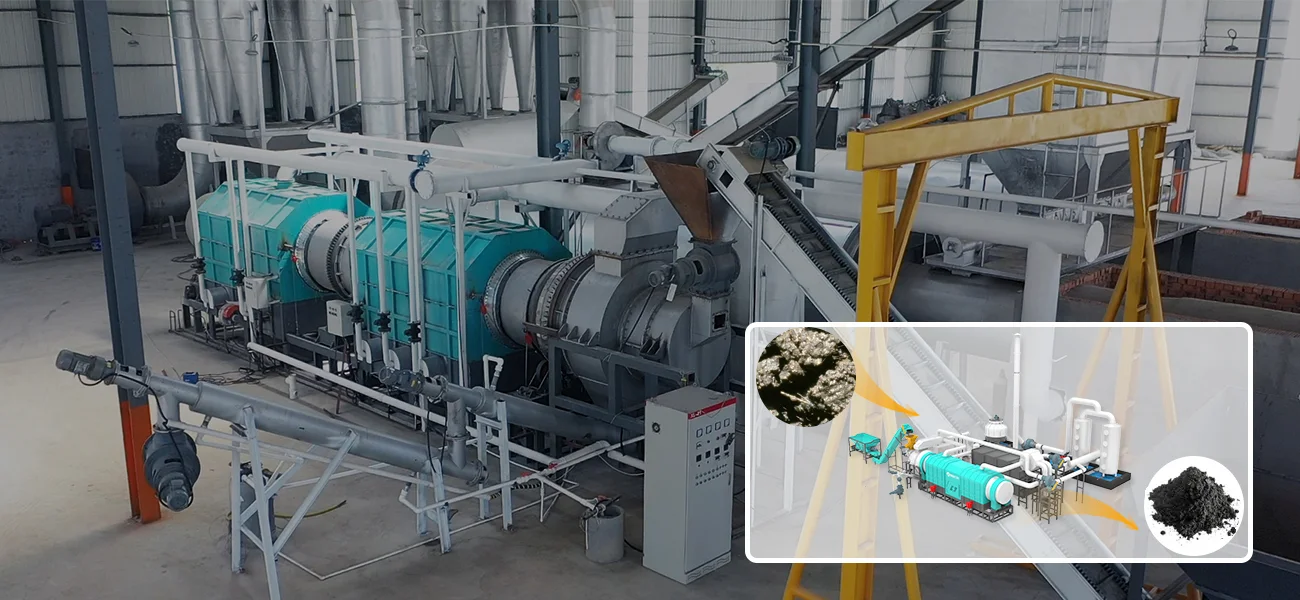

Sewage Sludge Treatment Plant

Sewage sludge treatment plant, as an innovative equipment, uses carbonization technology to convert organic matter into charcoal. The machine plays an important role in the environment. The application of the machine can reduce the volume of sewage sludge and solidify harmful substances. In addition, it also incorporates the concept of energy recovery, which provides a new way for sustainable development and resource utilization.

Sewage-Sludge-Treatment-Plant

What Raw Materials Can Sludge Treatment Plant Process?

Sewage sludge is a mixture containing solid matter that is separated from wastewater during sewage treatment. It usually contains the following components: organic matter, particulate matter, microorganisms, inorganic salts, heavy metals, and harmful chemicals. The sewage sludge carbonization machine converts the organic matter in the sludge into charcoal through the carbonization process, thereby reducing its volume and harmfulness. The prerequisite for the treatment is that the sewage sludge contains organic matter. The charcoal maker machine can process two kinds of sludge.

Municipal Sludge: Municipal sludge is a by-product produced in the process of urban sewage treatment, mainly from residents’ lives, commercial activities and municipal drainage.

Industrial Sludge: Industrial sludge results from treating wastewater discharged during industrial production, generating solid waste.

Raw Materials for Sludge Treatment Plant

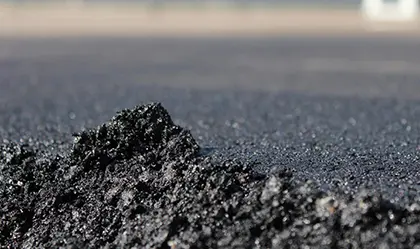

Uses of Sewage Sludge Charcoal

Sewage sludge charcoal has a wide range of uses. The specific uses are as follows:

Application Field
Daily life Used as fuel for cooking and grilling.
Agriculture Used as a soil amendment to improve soil fertility and water retention.
Industry Used as fuel in industries such as boiler/cement/ceramic/brick.
Sewage Sludge Charcoal for Cooking
Sewage Sludge Charcoal for Industry Fuel
Sewage Sludge Charcoal for Soil Improvement

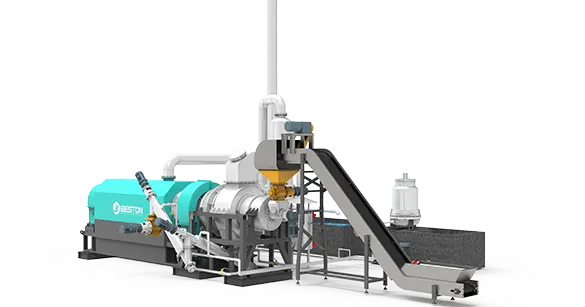

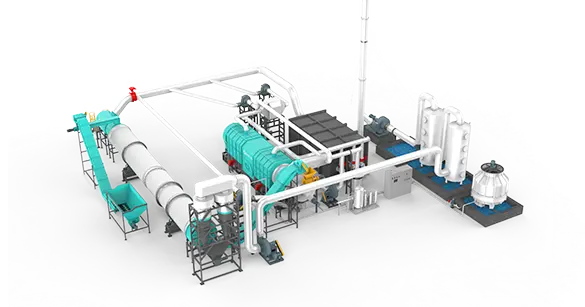

Basic Parameters of Sewage Sludge Treatment Plant

Considering the different needs of customers, Beston Group provides customers with different models of machines. Customers can choose the most suitable model according to the capacity and degree of automation of the equipment. Below are the specific parameters for your reference.

Batch Charcoal Making Machine in Kenya
Batch Charcoal Making Machine
Skid-mounted Charcoal Making Machine in Kenya
Skid-mounted Charcoal Making Machine
Continuous Charcoal Making Machine in Kenya
Continuous Charcoal Making Machine
ModelBST-J12BST-J18BST-J40BST-05 Pro (skid-mounted)BST-10BST-30BST-50
Input Capacity12m³/batch18m³/batch40m³/batch0.3-0.5m³/h2-4m³/h7-9m³/h10-15m³/h
Reactor Sizeφ1900mm*L4500mmφ1900mm*L6600mmφ2800mm*L7100mmφ830mm*L5500mmφ1300mm*L14051mmφ1700mm*L14180mmφ2000mm*L14260mm
Land for Equipment (L*W*H, Standard Configuration)9m*6m*6m12m*6m*7m15m*18m*7m10m*8m*3.9m29m*15m*5m30m*15m*8m35m*18m*9m
Weight (Standard Configuration)18T22T34T15T32T35T49T
Energy Consumption (Standard Configuration)11kw/h13.5kw/h25kw/h31kw/h34.7kw/h61.5kw/h116kw/h
Working MethodBatchFully continuous
Feeding Requirement/Size: ≤20mm; moisture: ≤15%; strong liquidity
StructureHorizontal rotationDouble barrel single hearthDouble barrel double hearth
Speed0-2RPM1-9RPM
Control MethodControl by buttonsPLC control
Reactor MaterialQ245RQ245+310S
PressureMicro negative pressure
Heating MaterialDiesel, natural gas, heavy oil, biomas, etc.
Heating MethodDirect heating
Noise (dB)≤80
CondenserCirculating water cooling
Rotation MethodExternal gear rotation

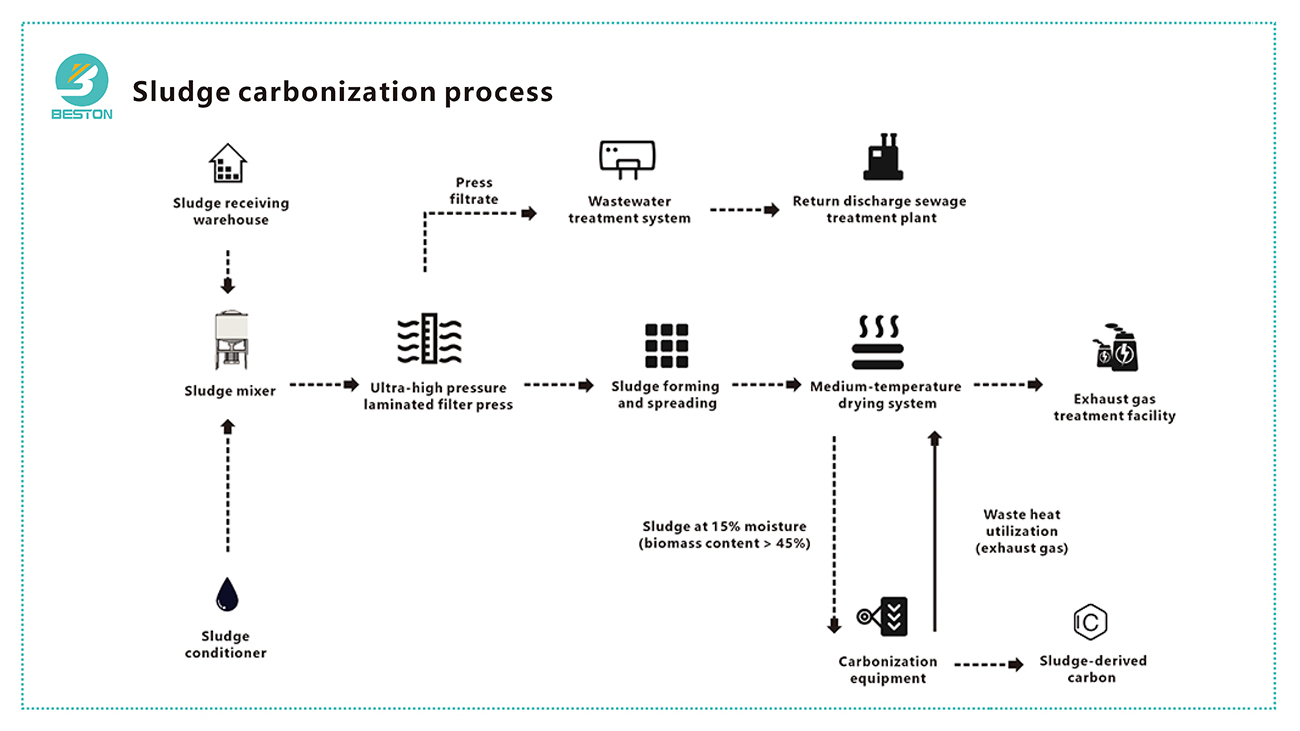

Sewage Sludge Treatment and Carbonization Process

Material Pretreatment

Unlike the treatment of other biomass, the treatment of sewage sludge is mainly for reduction. Before entering the machine, some pretreatment steps are usually required, such as solid-liquid separation, sieving, concentration, etc., to reduce moisture content and impurities. In addition to this, it is necessary to use a dryer when the moisture exceeds 15%. This is to improve the final carbonization efficiency.

Carbonization Process

The pretreated sludge is sent to the machine, which operates in a high-temperature and low-oxygen environment. The reaction temperature is usually between 300°C and 600°C. During this process, the organic matter undergoes a carbonization reaction, producing charcoal and some gaseous by-products.

Combustible Gas Recycling

First, the cyclone dust collector dedusts the combustible gas. Subsequently, the purified combustible gas is introduced into the auxiliary furnace as a heat source. The exhaust gas generated after utilization is again subjected to dust removal treatment through the cyclone dust collector. Finally, the exhaust gas is discharged after being purified by the exhaust gas dust collector.

Charcoal Collection

Charcoal is discharged through a three-stage water-cooled discharge machine. It has a lower temperature and doesn’t cause combustion.

Discharge Treatment

At the end of the process flow, further treatment of exhaust gas and wastewater may be required to ensure compliance with environmental regulations and discharge standards.

How to Make Sewage Sludge Charcoal

Traditional Sewage Sludge Treatment VS Sewage Sludge Carbonization Machine

Traditional Sewage Sludge Treatment

Processing Effect: Incomplete

The sludge may still retain organic components, the decomposition is not complete, and other materials may need to be added during the solidification process.

Reuse of Resources: Limited

In traditional treatment methods, the resource recovery and energy utilization of sludge are limited.

Environmental Protection: Inefficient

In the conventional approach to treatment, incineration may produce waste gas, and landfills may cause leakage, which may lead to environmental pollution and health risks.

Technical Requirements and Costs: Complicated

Building and operating urban sewage treatment plants requires a lot of equipment, manpower, and maintenance costs. Processing requires certain technical expertise.

Sewage Sludge Carbonization Machine

Processing Effect: Complete

Carbonization treatment can completely decompose and convert organic matter into solid charcoal, which helps to solidify harmful substances and reduce volume.

Reuse of Resources: Comprehensive

The carbonization process produces charcoal, which finds applications in soil improvement, biomass fuel, and other resource recovery purposes.

Environmental Protection: Sustainable

The carbonization process produces less exhaust gas, and the solids after carbonization are stable, which helps to reduce the release of harmful substances.

Technical Requirements and Costs: Convenient

Purchasing carbonization machines requires a certain amount of investment. The machine is simple to operate and requires proper operation and maintenance.

Sewage Sludge to Charcoal

Superiority of Beston Sewage Sludge Carbonization Treatment Plant for Sale

Beston Group is one of the top sludge carbonization machine manufacturers in the world. Our equipment adopts unique designs and world-leading technology. While ensuring efficient production, we also ensure the safety of the machine.

High Working Efficiency

  • This plant has a double-layer structure. The exterior layer is for the drying host and the interior one is for the carbonization host. The double-layer structure improves the carbonization environment, which makes thermal efficiency higher.
  • During the material carbonization process, part of the purified flammable gas generated is used to heat the combustion furnace, and the surplus part can provide the heat source for the front-end dryer. The whole process saves energy.

High Safety Insurance

  • The reaction area of the equipment adopts a new structure and high-temperature materials. In particular, the heating zone is made of 310S stainless steel. Such a design makes the machine more reliable against heat, which ensures safety.
  • Multiple zones of the machine set pressure and temperature detection feedback.  This enables timely debugging when the equipment operating parameters are abnormal. What’s more, there will be an alarm display if the electrical part fails.

Eco-friendly Design

  • The dust removal system of the machine includes three layers of activated carbon and ceramic ring adsorption, which significantly reduces dust pollution during the production process. This makes the operation of the machine eco-friendly;
  • The sewage generated in the production process adopts three-stage sedimentation technology. After sedimentation, carbonize the sludge. This realizes the deep utilization of resources, which makes the reduction of sewage sludge better realized.

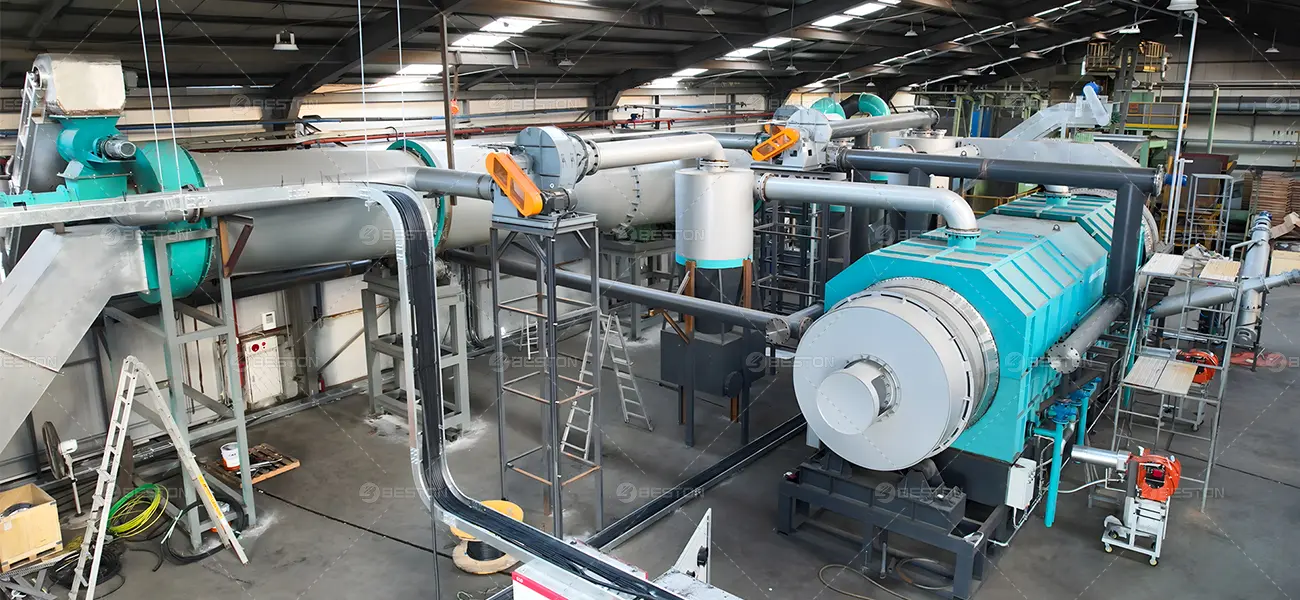

Installation of Sewage Sludge Carbonization Machine
Installation of Sewage Sludge Carbonization Machine

Grasp The Big Opportunity in Sewage Sludge Management and Disposal

If you are engaged in wastewater treatment and you have a large amount of sewage sludge to dispose of, carbonization will be the best choice for you. A sewage sludge treatment plant doesn’t spend too much but it can bring you back a lot of returns. Meanwhile, waste recycling and sustainable development of humans is a mainstream of current society, therefore, obey it and make use of what you have to realize it, and then you will be the biggest winner. Beston Group has plenty of waste recycling plants with different functions. You can go to our LinkedIn to get more useful information.
