Tyre Pyrolysis Plant

In response to the waste management crisis confronting the tyre recycling industry, recyclers are choosing tyre pyrolysis plant as a solution. This machine disrupts conventional recycling philosophy with pyrolysis technology, transforming tyres into pyrolysis oil. In addition, with pyrolysis solution, tyre recycling industry can achieve a sustainable closed loop. As a leading enabler of sustainable waste management, Beston Group looks forward to working with you to give a new life to end-of-life tyres.

Convert Tyre into Pyrolysis Oil

Types of End-of-life Tyre

Beston Group’s tyre recycling solutions are suitable for all kinds of tyres. In fact, tyres are a composite material resource. It is composed of natural rubber, synthetic rubber, steel, additives and other materials. Here are some common types of end-of-life tyres:

Types of Waste Tyre Commercial Tyre

Passenger Tyre

Passenger tyres are the most common tire type. It is used for motorcycles, small and medium-sized family cars and other passenger vehicles. They are usually disposed of by tyre recycling centres.

Types of Waste Tyre OTR Tyre

OTR(Off-the-Road) Tyre

OTR tyres are specially designed for heavy machinery such as excavators, bulldozers, and loaders. They are used in construction sites, mining industry, exploration, agriculture, and other heavy industries.

Types of Waste Tyre Passenger Tyre

Commercial Tyres

Commercial tyres are used on commercial vehicles such as trucks, buses, and vans. They are typically designed for commercial applications such as long-distance transportation, trucking, etc.

Types of Waste Tyre Manufacturing Waste

Tyre Manufacturing Waste

These wastes mainly include scraps generated during tyre manufacturing. Additionally, some expired tyres are included. Usually, they come from the tyre manufacturers.

100% Recycling Solution: Tyre Pyrolysis Plant

Tire pyrolysis plant changes the form of waste through thermochemical reactions. After the pyrolysis process, tyre is completely decomposed into tyre pyrolysis oil (liquid), carbon black/steel wire (solid), and syngas (gas). This method greatly improves the reduction efficiency of waste resources. At the same time, these pyrolysis products are used as renewable resources in industries such as energy substitution and manufacturing. This maximizes the value of waste resources. From waste treatment to product application, tyre pyrolysis achieves true 100% recycling.

Applications Of Tyre Pyrolysis Products

Pyrolysis oil

Pyrolysis oil is burned directly as fuel to provide energy in cement plants, boiler plants, power plants, etc.;
Non-standard diesel obtained after distillation can be used to generate electricity;

Steel wires

Reused in tyre production as eco-friendly material; Reprocessed into other metal products for sale.
The recycled iron wire can be used in construction and infrastructure projects, such as manufacturing rebars.

Carbon black

Reused in tyre production as eco-friendly material; Further processing into N330 carbon black; Used as an additive in asphalt mixtures, printing ink, black dye, paint, etc.

Syngas

It can be recycled to provide heat source for tyre pyrolysis after purification.
Collect separately for other uses.

Pyrolysis Vs. Other Tyre Recycling Methods

Existing tyre recycling methods mainly include rubber powder production, TDF(tyre-derived fuel) production, and use as construction fill material. These methods break down tyres into smaller-sized rubber products. However, waste tyres are not decomposed from the physical composition. Below is a comparison of these recycling methods with tyre pyrolysis.

Tyre Pyrolysis Building Materials Use TDF Production Tyre Powder Production
Processing Scale
Recycling Efficiency
Application Diversity
Clean & Sustainable
Aggregate Rating

Benefits of Tyre Pyrolysis

Tyre Pyrolysis Benifits Eco-friendly

Eco-friendly Working Principle

The pyrolysis plant prioritizes environmental responsibility. Waste such as particles and emissson gases are meticulously treated by dedusting system, like water washing, water spray, ceramic ring adsorption, and activated carbon adsorption, etc. This ensures compliance with EU emission standards and significantly reduces pollution.

Tyre Pyrolysis Benifits High-volume Reduction

High-volume Waste Tyre Reduction

The pyrolysis process involves the thermal desorption of tyres under microaerobic conditions. This is a method that changes the physical and chemical properties of tyres. It enables large-volume tyre recycling. Additionally, this minimizes the environmental impact associated with large tyre backlogs.

Tyre Pyrolysis Benifits Resource Utilization

Efficient Resource Utilization

Through the tyre pyrolysis process, various components (rubber, steel and synthetic materials) are converted into useful products (pyrolysis oil, carbon black, steel wire and syngas). They have a wide range of uses. Therefore, pyrolysis technology truly explores the utilization potential of waste resources.

Tyre Pyrolysis Benifits Economic Valuef

Additional Economic Value

End products all create additional revenue streams. Firstly, syngas as heating fuel can save your investment costs. Secondly, selling end products generates economic value. Moreover, they also contribute to driving the economic development of related industry chains and going on a beneficial regenerative economy.

What is Tyre Pyrolysis Process?

01Tyre Feeding

Pre-treated tyres are conveyed into the furnace through a feeding system. We provide manual, large platform, hydraulic and screw-feeding solutions for customers to choose from.

02Tyre Pyrolysis – Oil Formation

Oil gas: The main furnace is preheated, and the temperature inside continues to rise. When the temperature reaches 180 degrees Celsius, oil gas begins to generate. A significant amount of oil gas is produced when the temperature reaches 280-350 degrees Celsius.
Pyrolysis oil: The oil gas produced by pyrolysis first pass through the manifold. The manifold separates oil gas and heavy oil with a lower freezing point. Heavy oil enters the sludge oil tank. The oil gas enters the oil condenser and is liquefied into tyre pyrolysis oil. Pyrolysis oil falls into oil storage tank.

03Combustible Gas Recovery

Under the pressure generated by the reactor, the combustible gas that cannot be cooled enters the water seal. The water seal plays a role in purifying combustible gases. Clean combustible gas continues to provide heat for the main furnace.

04Carbon Black Collection

The carbon black formed during tyre pyrolysis is processed through a discharging system. Especially, we provide a three-stage water-cooled slag screw extractor. This can make the carbon black discharging temperature reach 50-80 degrees.

05Exhaust Gas Treatment

The high-temperature exhaust gas passes through the flue condenser and spray tower. This achieves the effect of cooling and dust removal. Finally, the exhaust gases are discharged from the chimney. If your area has higher exhaust emission standards, we provide high-end exhaust treatment systems. Final emissions can meet EU standards (SO2: 50mg/m3; NOx: 200mg/m3; dust particles: 10mg/m3).

Waste Tyre Pyrolysis Plant – 6 Models Available

Beston’s multi-product system can meet the different recycling needs of customers. We offer various models of waste tire pyrolysis plants. They can be divided into skid-mounted, batch, semi-continuous and continuous pyrolysis plant based on processing capacity and operating characteristics. Below are the specific models & parameters for your reference.

Tyre Pyrolysis Plant Skid-Mounted Type

Skid-mounted Type

  • Model: BLJ-3
  • Capacity: 1-3t/d
  • Feed size: 100mm-600mm rubber block
  • Low transportation costs
  • Easy to install and operate
Tyre Pyrolysis Plant Batch Type

Batch Type

  • Model: BLJ-6 BLJ-10 and BLJ-16
  • Capacity: 4-16t/d
  • Feed size: diameter < 1200mm tyre
  • No tyre pretreatment required
  • One furnace per day
Tyre Pyrolysis Plant Semi-Continuous Type

Semi-continuous Type

  • Model: BLL-16
  • Capacity: 8t/d
  • Feed size: diameter < 10mm rubber powder
  • Automatic spiral feeding
  • Three water-cooled slagging
Tyre Pyrolysis Plants Continuous Type

Continuous Type

  • Model: BLL-30
  • Capacity: 30-35t/d
  • Feed size: diameter=1mm-5mm rubber powder
  • 24h continuous working method
  • High-end exhaust gas treatment

ModelBLJ-3BLJ-6BLJ-10BLJ-16BLL-16BLL-30
Capacity1-3t/d4-6t/d8-10t/d12-16t/d8t/d (only for rubber powder)30-35t/d
Working ProcessBatchBatchBatchBatchSemi-continuousFully continuous
Reactor Sizeφ1400*4900mmφ2200*6000mmφ2600*6600mmφ2800*7100mmφ2800*7100mmφ1800*18500mm
Reactor MaterialQ345RQ345RQ345RQ345RQ345R310S stainless steel
Drive System350 reducer+4kw drive motor400 reducer+5.5kw drive motor400 reducer+5.5kw drive motor500 reducer+7.5kw drive motor500 reducer+7.5kw drive motorZQH650-50 reducer+15kw frequency conversion motor
Land (L*W*H)18m*4.2m*6m30m*12m*8m30m*13m*8m33m*13m*8m33m*13m*8m70m*20m*10m
Power16.65kw37.85kw44.3kw55.6kw55.6kw256kw
Burner2*200,000 kcal2*300,000 kcal2*300,000 kcal2*400,000 kcal2*400,000 kcal2.5 million kcal per set
Total Weight of Shipped MaterialsAbout 18tAbout 24.5tAbout 28tAbout 34.5tAbout 34.5tAbout 150t
Number of Containers1*40HQ1*40FR+1*40HQ+1*20 GP1*40FR+2*40HQ1*40FR+2*40HQ1*40FR+2*40HQ25m*8m bulk cargo+8*40HQ
Noise (dB)≤60≤60≤60≤60≤60≤60
Heating MaterialsFuel oil (including tyre/plastic pyrolysis oil), natural gas, LPG, diesel, etc.
Condensing SystemVertical Condenserφ426*3000
Single piece condensing area
7.58m2
φ630*3600
Single piece condensing area
17.8m2
φ630*3600
Single piece condensing area
17.8m2
φ820*3600
Single piece condensing area
35.6m2
φ820*3600
Single piece condensing area
35.6m2
φ920*3200
2 sets of vertical condenser
3-in-1 Condenser3000*2200*2250
Condensing area
17.51m2
5800*2260*2500
Condensing area
35.85m2
5800*2260*2500
Condensing area
35.85m2
8000*2260*2500
Condensing area
49.5m2
8000*2260*2500
Condensing area
49.5m2

Advantages of Waste Tyre Pyrolysis Machine

Mature Technology and Innovation

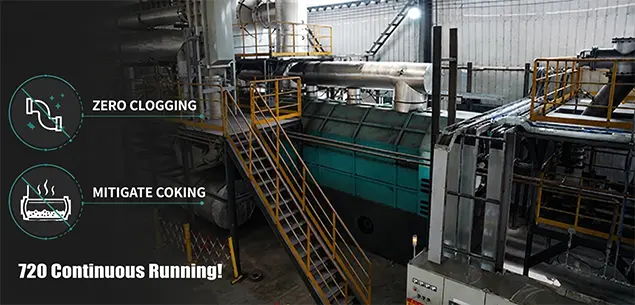

The tyre pyrolysis process is matured and stabilized. In addition, Beston Group has developed BLL-30 fully continuous tyre pyrolysis equipment. This model leads the industry’s development. This model enhances operational efficiency and reduces labor intensity.

Quality Control

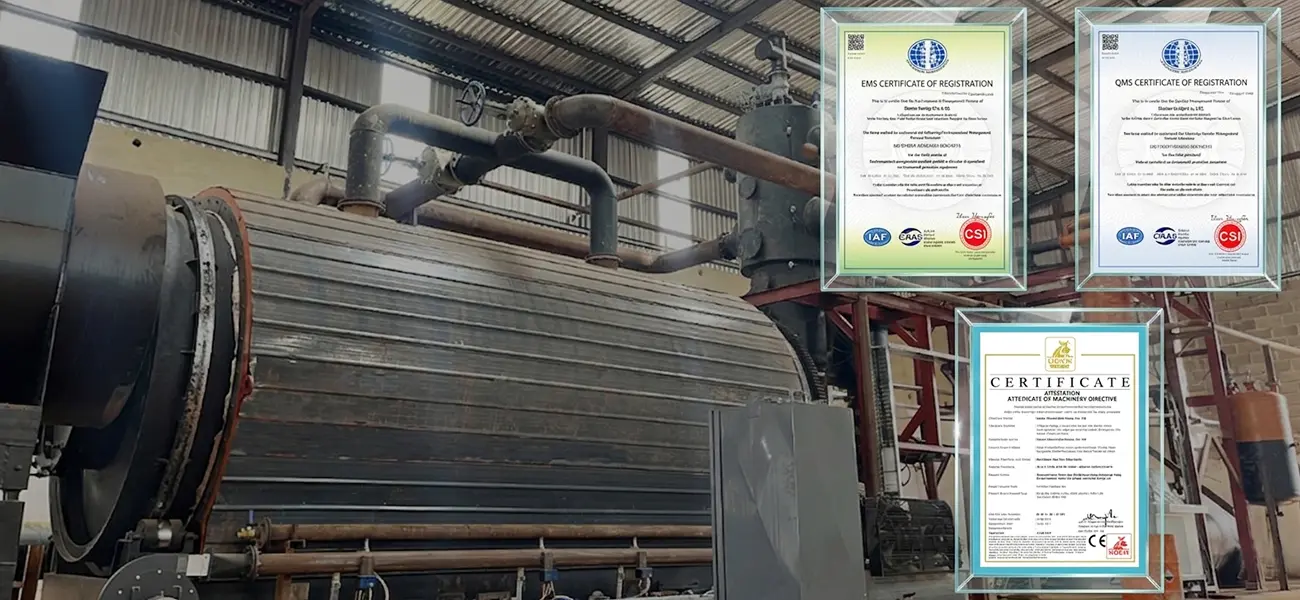

Beston tire pyrolysis machine undergoes a standard factory quality control process, including incoming material inspection, cutting, welding, polishing, and painting. The machine must undergo inspections by the production, quality control, and design department to ensure no issues.

Intelligent Control

Beston machine can be equipped with PLC and DCS (Dynamic Stability Control) remote control systems. These systems provide a high degree of automation. And they help reduce labor intensity.

Low Energy Consumption

The combustible gas generated during the tyre pyrolysis process can undergo secondary combustion. This step assists in reducing energy cost inputs.

Safety Design

The mechanical structure and process design simultaneously ensure the safe operation of the tire to oil plant. Additionally, the tyre pyrolysis machinery is equipped with a safety alarm system and matching protective covers for gearboxes.

Value-Added Product Services

Beston Group provides customers with layout diagrams, installation drawings, and system software upgrade services. These services fully align with customer needs and reduce additional expenses for customers.

Global Successful Cases of Beston Tyre Pyrolysis Plant

Beston waste tire pyrolysis equipment combines sustainability with high-quality standards, which achieves a positive ecological footprint. As a result, more and more recyclers are joining the ranks of Beston tyre recycling projects. We have 50+ successful tyre pyrolysis projects around the world. Therefore, regardless of your country of origin, we are well-equipped to provide you with comprehensive solutions. Below are successful pyrolysis plant cases for your reference.

Customer Review on Tyre Pyrolysis Solution

Running Video of Tire Pyrolysis Equipment Project in Azerbaijan

Beston Group is Your Choice

Pre-sales Service

In-sales Service

After-sales Service

Beston Group’s Pre-sales Service

Technical Consultation

Beston technical advisory team provides integrated technical consulting services about tyre recycling.

Material Testing

We offer tyre sample testing and provide bilingual test reports for cooperator reference.

Customized Solutions

Beston technical advisory team designs and produces comprehensive and specialized tyre recycling solutions for cooperators.

Beston Group’s In-sales Service

Value-Added Technical Services

Beston technical service team provides various design layouts based on cooperator site conditions.

Delivery Notification

The material control team in factory keeps cooperator informed in real-time about waste tire pyrolysis machine production and delivery status.

Beston Group’s After-sales Service

On-Site Installation Guidance

The after-sales service team provides on-site guidance for installation, debugging, and training until the scrap tyre pyrolysis plant is operational.

After-Sales Technical Consultation

The customer management team offers after-sales technical consultation services. We provide 24-hour online assistance to address cooperator requests.

Product Software Upgrade Services

Beston Group offers free control system product upgrade services. A single collaboration brings lifelong benefits.

Registered Qualifications – Before Starting Tyre Pyrolysis

You need to apply for some assessments and approval before you plan to start a tyre pyrolysis project. This is to ensure that the operation of the tyre pyrolysis machine complies with environmental, safety, and regulatory requirements. And this is also to safeguard public interests. The evaluation requirements vary by country. Here, we provide the common approval for your reference.

Operational Approval

MSME Registration
Operating Permit

Environmental Approval

EPR Registration
EIA
Air and Water Quality Monitoring

Safety Approval

Health and Safety Permit
Fire NOC

Construction Approval

HWA
Land Use & Building Permit
Factory License

Contact Us To Get Tyre Pyrolysis Solution

Utilizing a tyre pyrolysis plant for tire recycling is both resource-saving and environmentally friendly. If you are looking to recycle tires and promote resource utilization, we are ready to assist you. We provide comprehensive and professional solutions, including tire pre-treatment, pyrolysis, and exhaust gas treatment plans. Share your tyre pyrolysis needs with us, and together we can devise a tire recycling solution. It will have a positive impact on your organization or business by reducing carbon footprint and enhancing circular recycling efforts. Furthermore, it will expand your industrial chain to foster sustainable economic development. Contact us now for immediate assistance and more news on Beston Youtube.

    Please specify your requirement by referring to the following aspects:

    1-What kind of solution will meet your demand? (Key point)

    2-What kind of material and expected end product are you planning to have? (Right solution begins from material and product)

    3-When is the project supposed to be running? (Key info for A-Z project programming)

    4-Budget for machinery purchasing? (Key info for right model)

    5-Points that you really focus on. (Customized service from our project consultant)
