Coconut Shell Charcoal Making Machine

Coconut shell charcoal making machine is an efficient machine for recycling waste coconut shells. When you plan to recycle these coconut shells, you require more than a simple equipment provider. You need a proficient expert capable of delivering the appropriate solution. Welcome to get the pyrolysis solution from Beston Group.

Background of Coconut Industry

Production Countries

Coconut trees are grown in more than 80 countries. Here, we list the top 10 countries in coconut production. Indonesia, the Philippines and India are far ahead in coconut production among these countries. Coconut exports from these three countries account for 70% of global coconut exports. Please see the coconut production data.

Coconut Production Countries

Note: The following data are from 2023 statistics

Top Coconut Production Countries

Waste Disposal Status

In the coconut processing industry, a large amount of coconut biomass waste is generated and landfilled every year.

  • Firstly, coconuts are harvested in large quantities on coconut plantations. Some of the coconuts undergo preliminary treatment. In this process, the main wastes produced are coconut shell and coconut husk.
  • Secondly, the coconut is transported to the coconut food processing plant for processing. When the coconut meat and coconut water are collected and processed, a large amount of coconut husk/coconut fiber and coconut shell are abandoned.
  • Finally, coconut meat and coconut water are further processed into a variety of products, such as concentrated coconut water, coconut milk, coconut milk powder, coconut cream, copra, coconut oil, etc. In this process, the main waste is a large amount of coconut meat residues.
Coconut Waste Management Status for Pyrolysis

Coconut Shell Management

Among these kinds of coconut waste, coconut shell recycling is the main solution Beston Group offers. Approximately 50 million coconut shells are discarded every year. Landfill or discarding coconut shells produce greenhouse gases and pollutes the environment. Coconut shells is rich in cellulose, hemicellulose and lignin. It actually have a high energy value. This is a waste that needs to be recycled urgently.

Pyrolysis of Coconut Shell

Coconut Shell Recycling Solution – Pyrolysis

Beston Group provides a pyrolysis solution to reuse coconut shells with coconut shell charcoal making machine. Pyrolysis is the process of converting coconut shells to coconut shell charcoal by high-temperature anaerobic treatment. This biomass pyrolysis process is usually carried out in a closed and hypoxic environment. This ensures that the coconut shell does not burn completely. It also contributes to the formation of carbon-rich coconut shell charcoal.

Coconut Shell Charcoal Making Machine - Get Charcoal from Coconut Shell

Benefits Of Coconut Shell Pyrolysis

Benefits Of Coconut Shell Pyrolysis

Reduction

Implementing coconut shell pyrolysis reduces coconut shell volume in landfills and lessens the environmental impact of waste disposal.

Resource Utilization

Pyrolysis uses waste coconut shells to produce diverse and sustainable biochar. In this way, the coconut shell can be maximized as a resource. At the same time, this method expands the industrial chain and promotes the economic income of the coconut processing industry. It makes a great contribution to the resource-saving economy.

Coconut Shell Charcoal Making Process

The entire coconut shell recycling process mainly includes crushing, drying, feeding, pyrolysis, discharging, tar and wood vinegar collection, combustible gas recovery, exhaust gas treatment, and coconut shell briquette production. This video shows the working process of coconut shell charcoal machine. It is available to know more information about how to make charcoal from coconut shell.

01Preprocessing
  • Crushing (optional): The crushing system processes coconut shells into target sizes (less than 20mm).
  • Drying (optional): The drying system processes the coconut shell to a moisture content of less than 15%.
02Pyrolysis
  • Feeding: The coconut shells are uniformly sealed and transported into the main biochar reactor.
  • Pyrolysis: After heating the main furnace, the temperature gradually rises. The initial temperature helps dry out some of the moisture in the coconut shell. When the temperature reaches 250 degrees Celsius, demethylation begins. Combustible gas starts to generate. At 280 degrees Celsius, the exothermic reaction begins. The hydrocarbon molecules split into smaller carbon molecules and hydrogen. charcoal begins to be produced. As the temperature hits 450 degrees Celsius, aromatic ring compounds begin reacting.
03Discharging
  • Coconut shell charcoal: Through a three-stage water-cooling discharger, coconut shell charcoal below 45 degrees Celsius is collected.
  • Tar & wood vinegar collection (optional): Via the condenser, tar (biomass oil) and wood vinegar separate out and are collected separately. Coconut shell charcoal briquette making (optional): After being processed by the coconut shell charcoal briquette machine, the original shape of charcoal can be made into the required shape, such as round, square, stick, etc.
04Combustible Gas Recovery
After condensation and sulfur removal treatment, combustible gas can be recovered and reused.

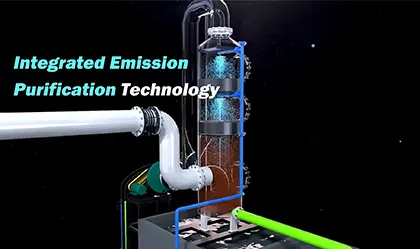

05Exhaust Gas Treatment
The emission gas is treated by a spray tower, water curtain de-dusting tower, and cooling tower. The processed emission gas meets the EU emission standards. Besides, Beston Group provides high-standard customized exhaust gas treatment system.

Coconut Shell Charcoal Composition Analysis

In coconut shell charcoal, the carbon content reaches more than 85%. The carbon content is very high. Depending on the type of coconut shell, moisture, and particle size, the content of the final ingredient in coconut shell charcoal is not entirely consistent. Here is an inspection report of a sample coconut shell for your reference. Terminal coconut shell charcoal processed by coconut charcoal making machine has low ash content and high calorific value. If you want to test your sample by our biochar machine, please contact us in advance and send the sample to us.

Results:
NO 1#
Kind Coconut shell
Total Moisture Mt% 9.1
Analytical Water Mad% 4.19
Dry Basis Ash Ad% 0.18
Volatile Matter on Dry Basis Vd% 6.95
Fixed Carbon Fcad% 88.68
Sulfur Content on Dry Basis St.d% 0.09
Coking Characteristics 1-8CRC
New national standard calorimeter dry basis high calorific value kcal/kg 7277
The new national standard calorimeter method receives the base low calorific value kcal/kg 6724
Remarks:
**℃ Out of water and oil, the highest temperature **℃ The above data is for reference only
Signature:
Tested Coconut Shell
Tested Coconut Shell Charcoal

Application of Coconut Shell Charcoal

Coconut shell to charcoal is a circular economy solution. Coconut shells are converted into biomass charcoal resources. Biomass charcoal can be applied to both the coconut shell cultivation industry and the food processing industry. This allows for sustainable development and a truly closed-loop solution.

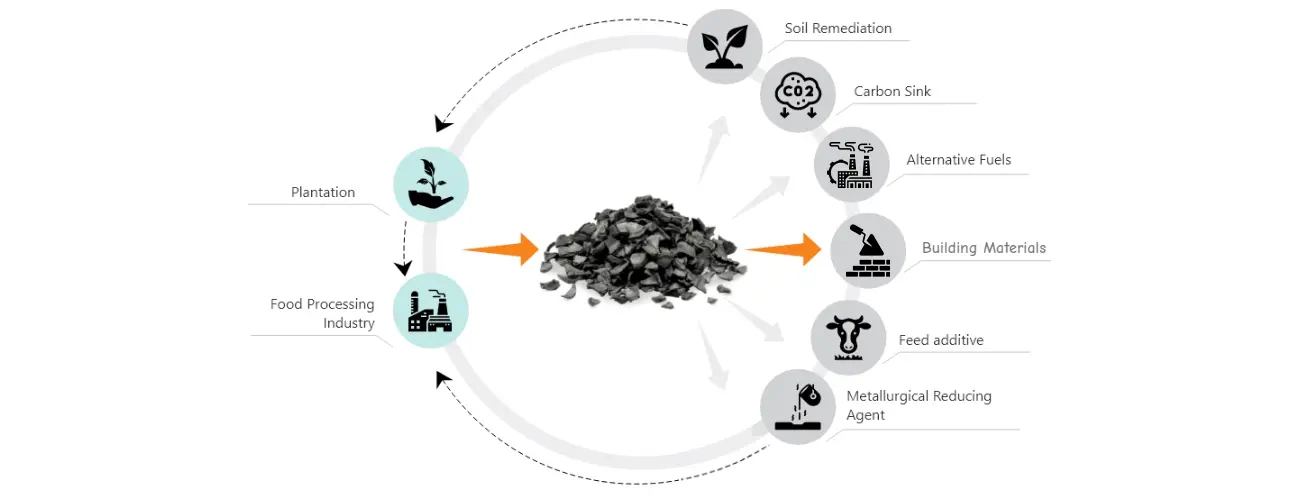

Circular Application of Coconut Shell Charcoal

Circular Application of Coconut Shell Charcoal

Soil Remedial Agent for Coconut Plantation

Coconut shell charcoal can be used to improve the structure of plantation soil. It helps enhance soil permeability, water retention capacity, and nutrient content. Additionally, coconut shell charcoal can aid in regulating the soil’s pH. View more information about biochar use in agriculture.

Alternative Fuel for Food Processing Industry

Coconut shell charcoal processed by coconut charcoal machine is an environmentally friendly and renewable energy source. It has high calorific value, low ash content, and a long burning time. Many food processing plants use coconut shell charcoal as an alternative heating fuel.

Multiple Uses of Coconut Shell Charcoal

01

Animal Feed Additive

02

Soil Improvement

03

Carbon Sink

04

BBQ

05

Shisha Charcoal

06

Metallurgical Reducing Agent

07

Alternative Fuel

Coconut Shell Charcoal as Animal Feed Additive
  • Improve feed efficiency
  • Improve animal digestive system
  • Increase animal egg/milk/meat production
  • Reduce emissions of greenhouse gases such as ammonia
  • Effectively remove pollutants and toxins from animals
Coconut Shell Charcoal as Soil Improvement
  • 80% microporous structure to improve soil aeration and drainage
  • Provide some trace elements, such as potassium, magnesium, zinc
  • Alkalinity and ion exchange helps adjust soil pH and save on fertilizer costs
Coconut Shell Charcoal as Carbon Sink
  • High carbon content
  • 100% Natural and environmentally friendly
  • Trap large amounts of carbon dioxide and Improve carbon footprint
  • Be used for market transactions, such as carbon credits, carbon offsets
Coconut Shell Charcoal as BBQ Charcoal
  • Low smoke
  • Low ash content
  • Long burning time
  • Fruity wood aroma
  • High carbon calories
Coconut Shell Charcoal as Shisha Charcoal
  • High hardness
  • Low smoke volume
  • Long burning time
  • Fruity wood aroma
  • Stable temperature
Coconut Shell Charcoal as Metallurgical Reducing Agent
  • Low cost
  • Environmentally friendly
  • More than 70% fixed carbon
  • Release large amounts of reducing carbon gas at high temperatures
Coconut Shell Charcoal as Alternative Fuel
  • Low ash content
  • Long burning time
  • High calorific value
  • Low carbon dioxide emissions

Coconut Shell Charcoal Making Machine – Get Charcoal

To recycle coconut shells into charcoal, Beston Group offers seven models of coconut shell charcoal making machine for sale. Please see the machine parameter details.

ModelBST-06BST-50
Input Capacity0.3-0.5m³/h10-15m³/h
Reactor Sizeφ820mm*L11200mmφ2000mm*L14260mm
Land for Equipment (L*W*H, Standard Configuration)25m*15m*8m35m*18m*9m
Weight (Standard Configuration)21T49T
Energy Consumption (Standard Configuration)153kw/h*0.7191kw/h*0.7
Working MethodFully continuous
Feeding RequirementSize: ≤20mm; moisture: ≤15%; strong liquidity
StructureDouble barrel double hearth
Speed1-9RPM
Control MethodPLC control
Reactor MaterialStainless steel 304
PressureMicro negative pressure
Heating MaterialDiesel, natural gas, heavy oil, biomas, etc.
Heating MethodDirect heating
Noise (dB)≤80
CondenserCirculating water cooling
Rotation MethodExternal gear rotation
Note: Beston coconut shell charcoal machine price ranges from $30500. The price varies with the configuration.

Coconut Shell Charcoal Briquettes Making Machine – Get Charcoal Briquettes

Coconut shell charcoal briquette making machine makes original charcoal into different shapes of charcoal, such as charcoal briquette, round charcoal, cube charcoal, finger charcoal, hexa charcoal, octa charcoal, flat charcoal, etc. In addition, Beston Group also provides customized coconut shell charcoal briquette making lines. Just tell us your needs.

Beston Coconut Shell Charcoal Briquettes Making Machine

Hexa Charcoal

Hexa Charcoal

Cube Charcoal

Cube Charcoal

Pillow Charcoal

Pillow Charcoal

Stick Charcoal

Stick Charcoal

Round Charcoal

Round Charcoal

Why Choose Beston Coconut Charcoal Making Machine?

Safety System

Beston coconut shell charcoal machinery are equipped with many devices to guarantee the safety of operation, like explosion-proof valves, alarm devices, micro negative pressure operation, etc.

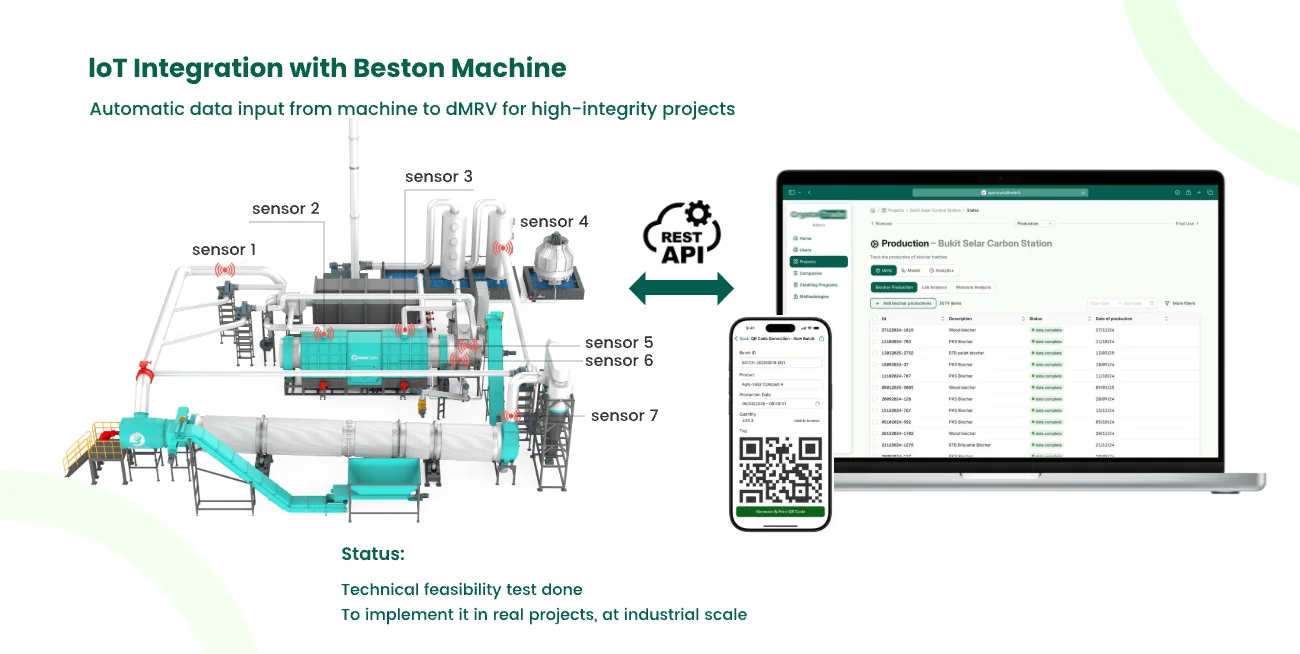

Internet of Things System (optional)

Customers use an IOT system to remotely monitor the operation of the charcoal making equipment and set early warning strategies.

Enery-efficient System

Reusing the combustible gas and the residual heat generated in the pyrolysis process to save energy and reduce the cost of fuel.

De-dusting System

Configure with the de-dusting system to make sure the residual heat and smoke meet the environmental protection standard

Success Stories – Coconut Shell Charcoal Machines in Application

Beston Group is one of top coconut shell charcoal machine manufacturers. We provide 50+ charcoal production machines to customers around the world. Meanwhile, we offer factory coconut shell charcoal making machine prices and production & delivery cycles of 1-3 months for these customers. Customers are satisfied with the solutions and services we provide. Here are two typical cases for your reference.

Step-by-Step Guide to Our Service Flow

Beston Group is Here to Help

Coconut shell charcoal making machine with pyrolysis technology is a complete solution for reducing waste, optimizing resources, and empowering the economy. It applies sustainable principles to transform coconut shell waste into valuable charcoal. This creates a future where caring for the environment and achieving economic prosperity go hand in hand. If you have questions about coconut shell recycling solutions, feel free to reach out to us today! If you wanna view more coconut shell to charcoal videos, view our Youtube channel!
