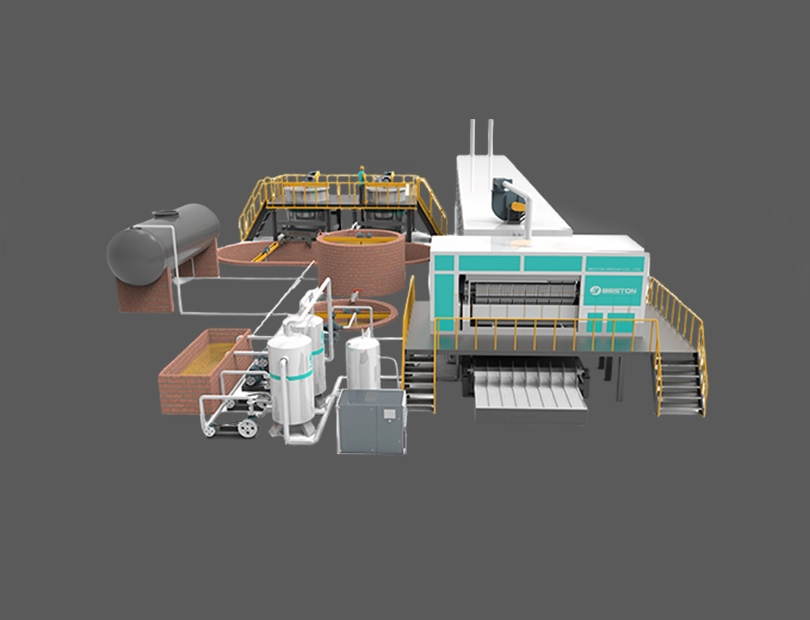

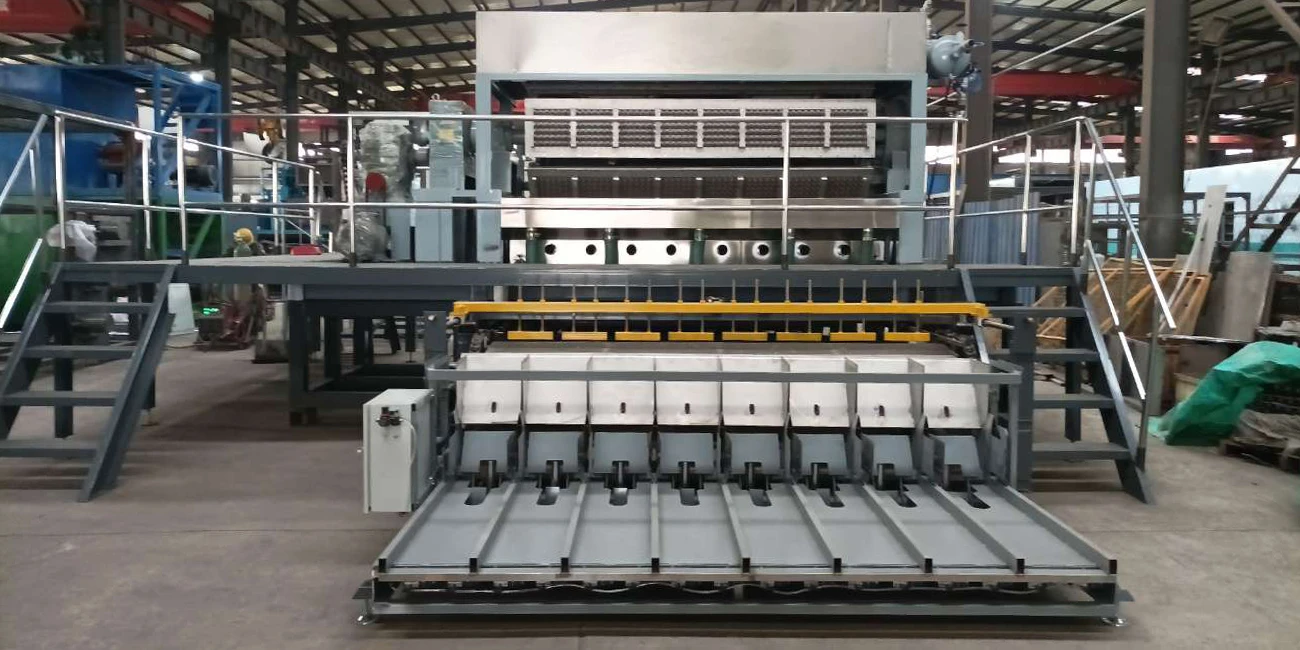

BTF 8-8 egg tray machine offers a massive capacity of 8,000–9,000 pieces per hour, specifically engineered for large-scale production of paper egg trays. It efficiently recycles waste paper into high-value pulp molded products, including egg trays, egg cartons, fruit trays and coffee cup holders. Fitted with a high-efficiency multi-layer metal drying line, the BTF8-8 is your ideal industrial solution to boost productivity, cut labor costs and expand market share.
Parameters of BTF8-8 Egg Tray Machine for Sale
| Model | BTF8-8 with Metal Dryer | |
|---|---|---|
| Capacity | 8000-9000pcs/h | |
| Forming Mould Quantity | 64 | |
| Total Power | 374.2kw | |
| Electricity Consumption | 261.94kw | |
| Staffing Demand | 5-7 | |
| Material Consumption | Paper | 640kg/h |
| Water | 1280kg/h | |
| Fuel Consumption | Natural Gas | 120-130m³ |
| LPG | 93-100kg | |
| Diesel | 90-100kg | |
End Product of BTF8-8 Egg Tray Machine
BTF8-8 egg tray machine is suitable for the production of a variety of pulp products. In order to meet customer needs, Beston Group provides molds of various shapes to produce final products for different uses.
- Egg tray: 18/20/24/30 holes.
- Egg box: 6/10/12/18 holes.
- Other pulp molded trays: coffee cup holders, shoe trees, industrial packaging, fruit trays, wine trays, seedling trays, etc.
Waste Paper: Raw Materials to Make Egg Tray
The raw materials available for the BTF8-8 egg tray machine include cartons, newspapers, books, notebooks, A4 paper, document paper, pulp, etc. They are primarily derived from pulp or paper-based materials. Different raw materials have different pulping times according to their hardness. If you have questions about raw materials, you can contact our project consultants.
Work Flow of BTF8-8 Egg Tray Machine
Step 1: Pulp Slurry Preparation
Waste paper is processed by the hydrapulper with water to make coarse pulp. The pulp is then transferred to the homogenization pool for further concentration adjustment. Finally, the prepared pulp is stored in the finished pulp pool.
Step 2: Pulp Molding
The pulp pump conveys the prepared pulp to the forming machine. Under under the suction power of vacuum pumps, the pulp adheres to molds to form egg trays. The air compressor then blows the formed egg trays off the molds.
Step 3: Metal Drying
The metal drying line utilizes flexible fuel options (such as natural gas, diesel, or LPG) to generate hot air at 180°C to 220°C to dry egg trays. Fans rapidly removes evaporated water. Once dried, the egg trays are conveyed to the packing machine.
Step 4: Egg Tray Packing (Optional)
The automatic stacker arranges dried egg trays into neat piles to improve space utilization. The packing machine compresses the piles to reduce volume for easier storage and transport. Finally, the packed trays are ready for delivery and sale.
Advantages of BTF8-8 Egg Tray Making Machine

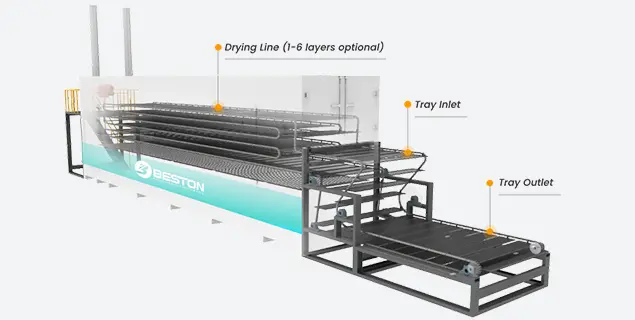

Efficient Metal Drying Method
The metal dryer is welded with thickened materials and adopts high-density mineral wool insulation. All high-temperature zones feature 316 stainless steel. With the circulating fan and automatic dehumidifying system, its energy efficiency is over 10% higher than peers.
- All-Weather Efficient Production: Greatly boosts productivity and protects production schedules from weather disruptions.
- Lower LaborCosts: Intelligent PLC control cuts labor costs effectively.
- Guarantee Egg Tray Quality: Even heating eliminates the risk of egg tray deformation and cracking.

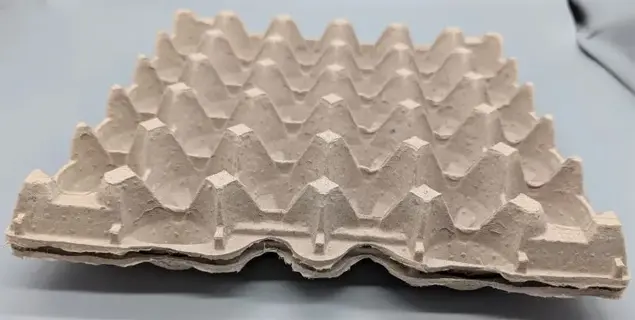

High Egg Tray Qualification Rate (>99.5%)
The equipment maintains a stable finished product qualification rate of over 99.5% under continuous operation. This high yield is directly supported by two core technologies:
- Advanced Vacuum Forming Technology: Ensures precise pulp fiber deposition and uniform wet-tray thickness, eliminating structural defects from the molding stage.
- Automatic Metal Drying Line: Delivers uniform heat distribution and controlled moisture evaporation, which removes the internal stress that causes egg tray deformation, warping, or cracking.

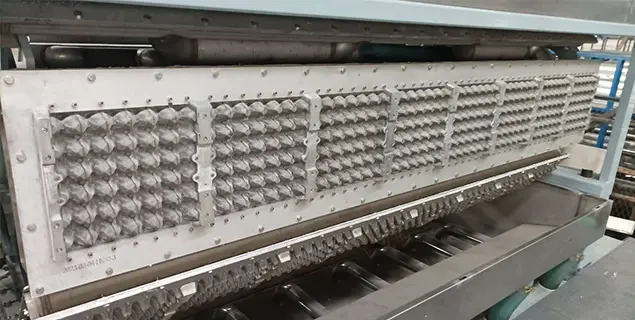

Top Mold Processing
We offer both aluminum and plastic molds to meet diverse customer needs. Supported by 30 years of mold manufacturing experience and CNC machining centers, we deliver an annual output of approximately 1,200 mold sets, earning high trust from global clients.
- Aluminum Molds: 5-8 years long lifespan; wear and oxidation resistance; reduces resistance during pulp molding.
- Plastic Molds: 2-3 years lifespan; cost-effective choice; less pulp residue and less cleaning frequency.

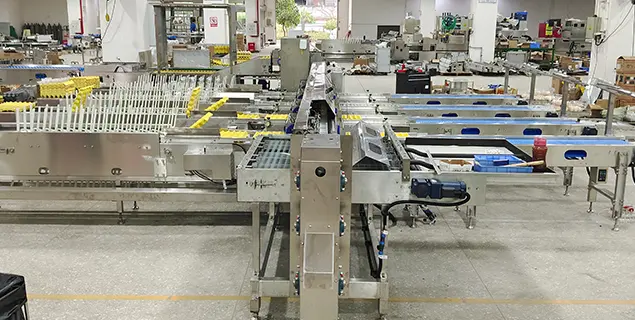

Precision Manufacturing & Quality Assurance
- All structural frames are fabricated from national-standard steel.
- All machined components are processed by CNC equipment.
- Every unit undergoes inspections by the Production, Quality Inspection and Design Departments. It can only be delivered after passing all checks.
- All auxiliary parts adopt first-tier brands, such as Delixi, Black+Decker, Siemens and Schneider Electric.
- Key transmission parts are made of customized special steel, including 40Cr and 304 stainless steel.
ISO & CE Certificates of BTF8-8 Egg Tray Making Machine
Main Components of BTF8-8 Paper Egg Tray Machine
Hydraulic Pulper
Pulp Beater
Pulp Pump
Forming Machine
Vacuum Pump
Air Compressor
Metal Dryer
Packing Machine
| Component | Function |
|---|---|
| Hydraulic Pulper | Crush the paper raw material into cellulose form. This facilitates the subsequent pulping and molding process. |
| Pulp Beater | Mix the slurry evenly to stabilize the concentration. This ensures consistency and high quality in the end product. |
| Pulp Pump | Transport the prepared slurry from the pulping system to the forming machine. |
| Forming Machine | Mold the pulp material into the desired shape of an egg tray or other paper product. |
| Vacuum Pump | Suck The slurry onto the forming mold. In addition, drain the moisture from the egg tray. |
| Air Compressor | Blow the egg tray from the forming mold to the transfer mold. Then, blow the egg tray onto the conveyor belt. |
| Metal Dryer | Take away the moisture in the wet tray and get the dry finished tray. |
| Packing Machine | Save space and thus transportation costs. |
Beyond BTF-8-8: Comprehensive Product Line Meets Customer Needs
BTF4-4
BTF4-8
BTF5-8
BTF6-8
BTF8-8
FAQs
01Can sugarcane bagasse, straw, and other plant fibers be used to make egg trays?
Other plant fibers or alternative raw materials should not exceed 5% of the total mix.
02What is the ratio of paper to water for egg tray making?
The precise mixing ratio by weight varies across different production stages:
- Pulping Stage: 1:5 to 1:6. Waste paper is processed by our high-consistency hydrapulper.
- Pulping Blending Stage: 1:10 to 1:15. The pulp is further diluted in the homogenization pool to maintain stable consistency.
- Drying Stage: 1:2 to 1:3. Excess moisture of egg trays is removed via evaporation.
03What is the temperature of metal dryer?
Top Layer: 200°C-210°C. Middle Layer: 150°C. Bottom Layer: 80°C-90°C.
04How long does it take to install the BTF8-8 egg tray machine?
05Do you provide a warranty for egg tray machine?
Start Your Egg Tray Making Business With Beston Group
Market insights from the International Egg Commission (IEC) show that global egg production and consumption are rising steadily. Driven by this trend, the demand for sustainable packaging is surging globally. To capture this profitable market, Beston Group’s flagship BTF8-8 egg tray machine offers top-tier pulping, molding, and drying technologies for high-capacity production. Contact us today for customized solutions!
