Metal dryer is an automatic drying solution designed for egg tray production lines. It reduces moisture of freshly molded pulp trays from 60–70% to 10–15%. This gives egg trays optimal structural strength and protection against mold and deformation, ready for storage and shipment. Compared to natural air-drying or brick tunnel kilns, the metal dryer delivers more uniform drying, higher thermal efficiency, and weather-independent continuous production. It is the preferred choice for medium and large-scale egg tray manufacturers.
Secifications of Beston Metal Dryer
| Specification Item | Technical Parameter |
|---|---|
| Brand / Name | Beston Metal Dryer |
| Drying Line Type | Single-layer / Multi-layer (1-6 layer customizable solutions) |
| Drying Capacity | 2,500 – 10,000 pcs/h |
| Effective Dimensions (L × W × H) | 20,520 mm × 2,200 mm × 3,700 mm |
| Operating Temperature | 80°C – 210°C |
| Conveyor Speed Control | Variable Frequency Drive (VFD) / Adjustable Speed |
| Main Structure Material | 316 Stainless Steel |
| Insulation Layer | 120mm High-density Rock Wool |
| Supported Thermal Energy | Natural Gas, Diesel, LPG, LNG, etc. *Note: Coal or wood cannot be used. |
How Does a Metal Dryer Work? – Full-automatic Drying Process
Step 1: Wet Pulp Tray Loading
Freshly demolded egg trays (~60–70% moisture) are loaded onto a conveyor belt and fed into the drying chamber at a steady speed.
Step 2: Hot Air Circulation & Heating
Circulating fans distribute hot air uniformly throughout the chamber, rapidly evaporating moisture within the egg trays. Zone temperatures range from 80–90°C (lower), 150°C (middle), to 200–210°C (upper).
Step 3: Moisture Removal
With an automatic dehumidification system, water vapor is vented out of the chamber through dedicated exhaust ports.
Step 4: Finished Pulp Tray Discharge
When egg tray moisture falls under 15% and trays meet standard strength specs, they exit the line ready for packaging and storage.
Inside Look: Unique Designs of Multi-layer Metal Dryer
1-6 Layers Vertical Layout
Space-Saving & Large Capacity
Utilizing a multi-layer vertical structure (1–6 layers optional) to stretch the drying path upward rather than outward through an S-shaped continuous conveyor loop. This design expands your production capacity while reducing the required land area by over 50%.
Hot Air Circulation System
High-Efficiency & Energy-saving
High-velocity fans actively drive heated air to circulate uniformly across all layers, delivering 40% higher airflow than industry standards for uniform drying. This advanced aerodynamic design cuts fuel consumption, delivering over 10% energy savings compared to conventional metal dryers.
PLC Automation Control
Stable Egg Tray Quality
Features an intelligent PLC system for precise one-touch operation. By monitoring and automatically adjusting multi-zone temperatures in real time, it completely eliminates manual operational errors and fluctuating environmental factors, ensuring a consistent, high-yield production of premium egg trays.

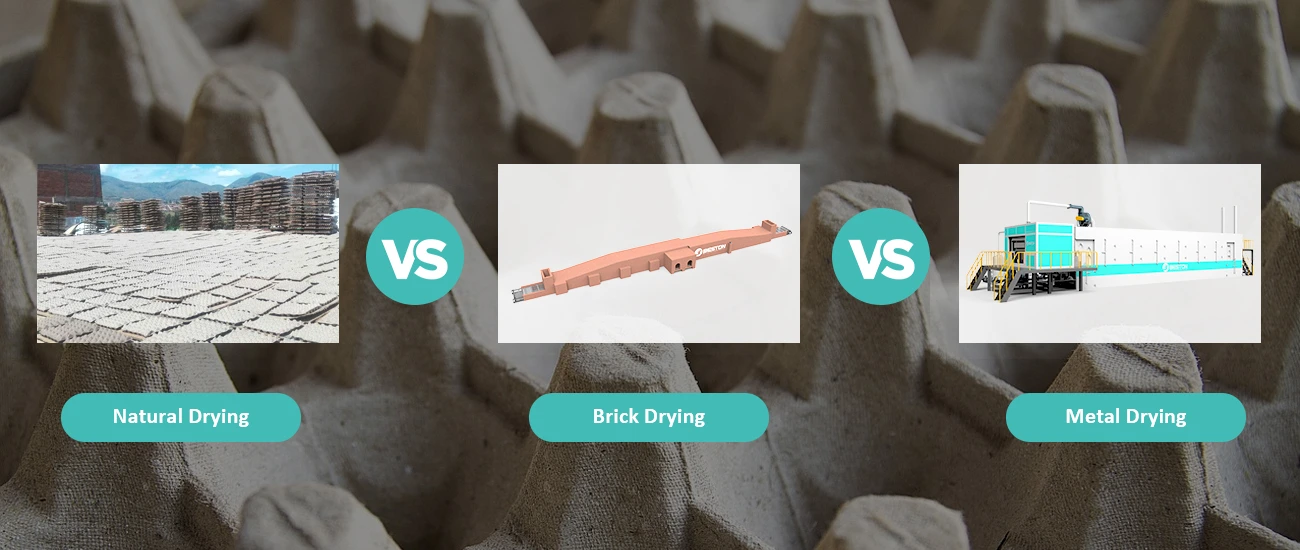

Comparison of Drying Methods: Why Choose Automatic Metal Dryer
Natural Sun Drying vs Metal Drying System
Natural Sun Drying
- Long drying time (6–8 hours), highly dependent on light intensity.
- Production stops during rain or cloudy days; high risk of seasonal downtime.
- Requires massive drying space; high land acquisition/rental costs.
- Inconsistent drying levels between batches; high product breakage and defect rates.
- Requires heavy manual labor for turning, moving, and guarding; high labor costs.
Metal Drying System
- 20-25 mins completion; 24/7 operation regardless of weather conditions.
- Fully enclosed chamber; stable output in rain, snow, or winter.
- Compact footprint; no extra drying yard needed, maximizing factory space.
- Uniform temperature (error ±2°C); consistent batch quality with ≥98% yield rate
- Fully automated conveyor; 1 operator manages the line, reducing labor costs by 80%.
Brick Tunnel Kiln vs Metal Drying System
Brick Tunnel Kiln
- Long construction period (2–4 months).
- requires 3–5 hours of preheating; significant energy waste.
- Manual adjustment based on experience; risk of over/under drying.
- Brick cracks/dampness lead to complex repairs; major maintenance causes days of downtime.
- Immovable during factory relocation; total loss of civil engineering investment.
Metal Drying System
- Factory pre-fabricated; 7-day onsite assembly.
- Reaches working temperature in 20 mins; energy savings.
- PLC control; precise temperature control; fully automated adjustments.
- Modular metal structure; parts replaced within 2 hours; minimal production loss.
- Entire system can be dismantled and moved; protects your equipment investment.
ISO & CE Standard Certificate
Onsite-view of Beston Metal Egg Tray Drying System
- Dear friends, this is a complete structure of a BTF 5-8 metal drying egg tray machine. It is about to be shipped.
- Follow me. Let’s take a look of the inner layout of the metal dryer.
- Let’s go inside.
- Although it’s still empty, we can see the upper and lower sieve plate is already positioned. Later the trays will be running in between.
- The metal dryer we have is with 6 layers. You can see the rails from here.
- All the surface is made out of stainless steel. The wall is using a double layer design, in between is heat resistant wool.
Service & Support: Long-Term Reliability
Free 3D Layout Design
Complimentary factory spatial planning and equipment layout design.
On-Site Technical Guidance
Global support via remote video inspection or dispatching field engineers for overseas installation and commissioning.
Lifetime Parts Supply
Lifelong availability of wear parts (chains, bearings, etc.) at cost-based pricing.
Warranty Policy
1-year comprehensive warranty for the entire equipment package.
Scale Up Your Egg Tray Production with Metal Dryer
From 1–6 layer metal drying solutions to complete egg tray production line, Beston Group provides the exact engineering your project demands. Contact us today to get your customized project within 24 hours. Let’s build your sustainable, high-yield production line together.
