In response to the tyre waste crisis, pyrolysis is gaining attention as a sustainable solution. Beston Group’s BLL-30 tyre pyrolysis plant can efficiently convert 10,000 tons of waste tyres into oil and carbon black each year, offering a closed-loop, eco-friendly approach to tyre recycling. As a leading enabler of sustainable waste management, we look forward to working with you to give a new life to end-of-life tyres.

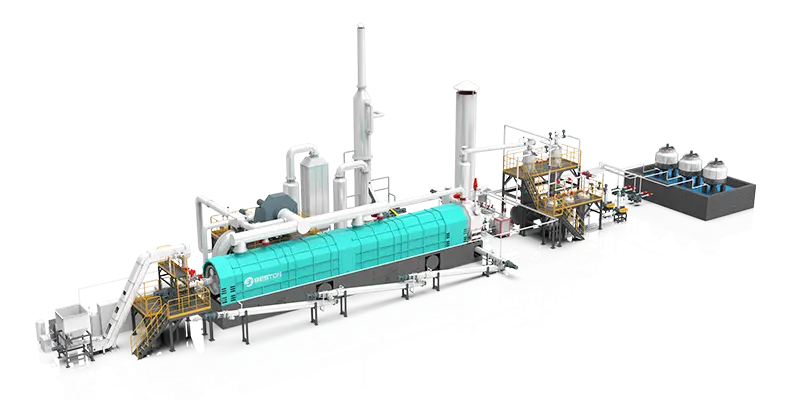

Tyre Pyrolysis Plant – 3 Models Available
Beston Group’s comprehensive product system provides customers with 3 types to choose from. They can meet the different production needs of customers. In addition, the diverse pyrolysis equipment options ensure that customers get the most suitable solution at a reasonable thermal desorption unit price.
Continuous Type: BLL-30
- Process 10,000 tons tyres annually
- 30 day continuous operation
- High automation: two operators required
- Policy support and incentives
- Easy to get environmental compliance and approval
Batch Type: BLJ-20
- Process 6,000 tons tyres annually
- Get naphtha & non-standard diesel in one step
- 1 batch/day
Batch Type: BLJ-16
- Process 4,000 tons tyres annually
- 1 batch/day
- 2 Configuration options
| Model | BLL-30 | BLJ-20 | BLJ-16 Standard | BLJ-16 ULTRA |
|---|---|---|---|---|
| Manufacturer | BESTON | BESTON | BESTON | BESTON |
| Time to Market | 2025 | 2025 | 2013 | 2022 |
| Motor Brand | Chinese brand | Chinese brand | Chinese brand | ABB Explosion-proof |
| Suitable Raw Materials | Waste plastics; Tires; Oil sludge | Waste plastics; Tires; Oil sludge | Whole tire<120cm; Tire blocks<15cm; Oil soil with liquid content<30% | Waste plastics; Tires; Oil sludge |
| Input Capacity (Max.) | Waste plastic pellets: 0.8-1.05t/h Rubber powder: 1.25-1.5t/h Oil sludge:1.8-2.3t/h | Waste plastic pellets: 12-13t/d Tire: 18-20t/d Oil sludge:20-22t/d | Whole tire <120cm or Tire blocks<15cm: 10-12t/batch Sidewall removed tire: 15-16t/batch Oil soil: 16-18t/batch | Waste plastic bales: 8-10t/batch Whole tire <120cm or Tire blocks<15cm: 10-12t/batch Sidewall removed tire: 15-16t/batch Oil sludge: 16-18t/batch |
| Working Method | Fully Continuous | Batch | Batch | Batch |
| Final Oil Quality | Pyrolysis oil Pyrolysis oil with wax or naphtha | Pyrolysis oil, Non-standard diesel and naphtha | Pyrolysis oil | Pyrolysis oil Pyrolysis oil with wax or naphtha |
| Reactor Material | 304/310S Stainless steel | Q345R Boiler steel and 304/316L/310S Stainless steel | Q345R Boiler steel | 304 Stainless steel |
| Reactor Life Span (Years) | 5-8 | Q345R Boiler steel 2-3 304/316L Stainless steel 5-8 310S Stainless steel 8-10 | 2-3 | 5-8 |
| Guarantee (Months) | 12 | 12 | 12 | 12 |
| Delivery Time (Calendar Days) | 60-90 | 60 | 45 | 90 |
| Land Space Required (L*W*H*m) | 70*20*10 | 40*13*8 | 33*13*8 | 33*26*8 |
| Packing | 20*6*3m in bulk+13*40HQ | 1*40FR+4*40HQ | 1*40FR+3*40HQ | 1*40FR+8*40HQ |
| Installation Period (Calendar Days) | 60-90 | 45 | 45 | 60 |
Three Major Upgrades in BLJ-20 & BLL-30 Pyrolysis Plant
BLJ-20
BLL-30

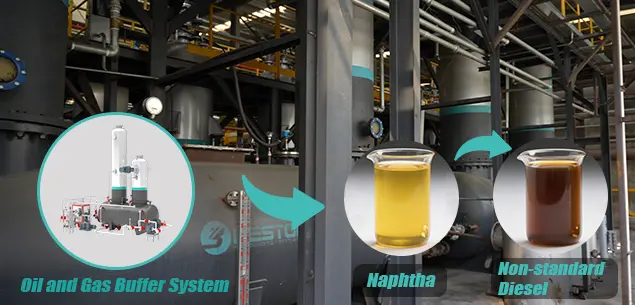

Upgrade 1: One-Step Naphtha & Non-standard Diesel Recovery
-Fraction Distillation Technology
This technology ensures simultaneous pyrolysis and classified collection of oil products. Below 200℃, naphtha is collected into the light oil tank, while above 200℃, non-standard diesel is directed into the heavy oil tank. This brings BLJ-20 plant the following advantages:
- Higher product value: Two high-quality oil products in one process, boosting market price.
- Lower investment cost: No need for additional distillation equipment, reduced capital spending.
Upgrade 2: ↑50% Tire Processing Capacity
-ø2800×10000 Large Main Reactor Design
The main reactor design enhances heat transfer and material contact efficiency, raising throughput by about 50% compared with conventional models. It supports:
- Larger processing scale: Annual tire treatment capacity up to 6,000 tons, ideal for medium to large projects.
- More stable operation: High thermal capacity minimizes temperature fluctuations.
Upgrade 3: Enhanced Safety Performance
-Thermal Dynamic Sealing + Flexible High-temperature Insulation Technologies
Dual technologies improve reactor sealing and insulation, delivering safer and more reliable operation than conventional pyrolysis, which enables:
- Leakage prevention: Better sealing eliminates oil and gas escape.
- Flameless environment: No fire source exposure on site.
- Reduced heat hazards: Insulation blocks heat radiation, protecting operators.

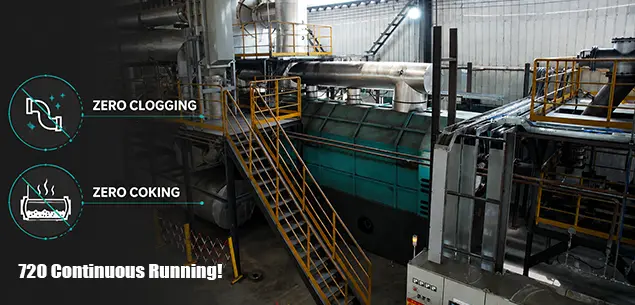

Upgrade 1: Non-Stop Operation for 30 Days
Enabled by an advanced oil-gas condensation and anti-polymerization system, BLL-30 continuous tyre pyrolysis plant ensures uninterrupted operation for up to 30 days. It supports:
- Process 10,000 tons waste tyres annually;
- Only 2 workers requird;
- Significantly boosts productivity while minimizing downtime.
Upgrade 2: ↓55% Fuel Use & ↓50% Emission
Through the integration of hot flue gas recirculation and preheated air distribution technology, tire pyrolysis plant maximizes the reuse of high-temperature pyrolysis gases. It supports:
- 55% reduction in fuel consumption;
- 50% decrease in exhaust emissions;
- Delivers both economic and environmental benefits.
Upgrade 3: Auto Control for Premium rCB
Adopt multi-media automatic combustion valve system, combined with hot air recirculation technology, which enables:
- Precise temperature control within ±10℃;
- Reduces the TPH (Total Petroleum Hydrocarbons) content in carbon black;
- Enhances carbon black’s purity and commercial value for downstream applications.
Carbon Black Value Upgrade: Boosts ROI 5 Times
Carbon black produced from waste tyre pyrolysis plant is further processed through grinding and granulation, enhancing its specific surface area and enabling its use in higher-grade applications such as N330, N550 and N660. This value-added upgrade transforms low-value carbon black into a profitable resource—boosting the overall returns (pyrolysis oil + rCB) of the pyrolysis project by up to five times.
Higher Market Value
N330, N550 and N660 grades are widely accepted in industrial markets and can be sold at prices significantly higher than raw pyrolysis carbon black.
Increased Profit Margins
The value-added process turns a low-cost byproduct into a profitable secondary material, enhancing overall return per ton of waste tyres.
Better Market Access
Standardized grades like N330 open the door to stable, large-volume industrial buyers, improving sales stability and scalability.
Types of End-of-life Tyre
Beston Group’s tyre pyrolysis plant is suitable for all kinds of tyres. In fact, tyres are a composite material resource. It is composed of natural rubber, synthetic rubber, steel, additives and other materials. Here are some common types of end-of-life tyres：
Passenger Tyre
Passenger tyres are the most common tire type. It is used for motorcycles, small and medium-sized family cars and other passenger vehicles. They are usually disposed of by tyre recycling centres.
OTR(Off-the-Road) Tyre
OTR tyres are specially designed for heavy machinery such as excavators, bulldozers, and loaders. They are used in construction sites, mining industry, exploration, agriculture, and other heavy industries.
Commercial Tyres
Commercial tyres are used on commercial vehicles such as trucks, buses, and vans. They are typically designed for commercial applications such as long-distance transportation, trucking, etc.
Tyre Manufacturing Waste
These wastes mainly include scraps generated during tyre manufacturing. Additionally, some expired tyres are included. Usually, they come from the tyre manufacturers.
Versatile Applications of Tyre Pyrolysis Products
Waste tire pyrolysis plant uses thermochemical reactions to break down waste tires into pyrolysis oil (liquid), carbon black or steel wire (solid), and syngas (gas). This process significantly improves waste reduction efficiency. The resulting products are reused in energy and manufacturing industries, turning waste into valuable resources and achieving 100% recycling.
Naphtha & Non-standard Diesel
- Naphtha: Used in plastic manufacturing; as industrial and laboratory solvent; as a gasoline blending component.
- Non-standard Diesel: Used to generate electricity; as fuel for boilers, furnaces, marine and construction machinery.
Steel wires
- Tyre reuse: Reused in tyre production as eco-friendly material;
- Metal reprocessing: Reprocessed into other metal products for sale;
- Construction usage: The recycled iron wire can be used in construction and infrastructure projects, such as manufacturing rebars.
rCB
- Industrial usage: Carbon black can be directly used in the production of cement, asphalt, inks, coatings;
- Further processing: rCB can be further processing into N330, N550 and N660 carbon black;
- Additive: Used as an additive in asphalt mixtures, printing ink, black dye, paint, etc.
Syngas
- Energy supply: It can be recycled to provide heat source for tyre pyrolysis after purification;
- Other use: Collect separately for other uses.
Representative Case: Waste Tyre Pyrolysis Plant in Saudi Arabia
01 Problems & Needs
Large capacity tyre disposal demand: The Saudi customer faced a large volume of waste tyres requiring efficient and compliant treatment.
02 Action Solution
- Model recommended: To meet the customer’s processing requirements, we provided the BLJ-16 tire pyrolysis plant with a capacity of 12–16 tons per batch.
- Improve feeding efficiency: An additional hydraulic feeding system was added to the standard configuration to improve feeding efficiency.
- Improve discharging efficiency: Given the hot local climate, a water-cooled screw discharger was also included to accelerate carbon black cooling after discharge.
03 Results Achieved
Efficient tire handling: Enabled continuous processing of large volumes of tyres into fuel oil and carbon black, increasing product value and resource utilization, with an annual processing capacity of 4,320 tons of waste tyres.
6 Highlights of Waste Tyre Pyrolysis Plant
Mature Technology and Innovation
The tyre pyrolysis process is matured and stabilized. In addition, Beston Group has developed BLL-30 fully continuous tyre pyrolysis plant. This model leads the industry’s development. This model enhances operational efficiency and reduces labor intensity.
Quality Control
Beston tyre pyrolysis plant undergoes a standard factory quality control process, including incoming material inspection, cutting, welding, polishing, and painting. The machine must undergo inspections by the production, quality control, and design department to ensure no issues.
Intelligent Control
Beston machine can be equipped with PLC and DCS (Dynamic Stability Control) remote control systems. These systems provide a high degree of automation. And they help reduce labor intensity.
Low Energy Consumption
The combustible gas generated during the tyre pyrolysis reaction can undergo secondary combustion. This step assists in reducing energy cost inputs.
Safety Design
The mechanical structure and process design simultaneously ensure the safe operation of the plant. Additionally, the tyre pyrolysis plant is equipped with a safety alarm system and matching protective covers for gearboxes.
Value-Added Product Services
Beston Group provides customers with layout diagrams, installation drawings, and system software upgrade services. These services fully align with customer needs and reduce tire pyrolysis plant cost for customers.
What is Tyre Pyrolysis Process?
01 Tyre Feeding
02 Tyre Pyrolysis – Oil Formation
Pyrolysis oil: The oil gas produced by pyrolysis first pass through the manifold. The manifold separates oil gas and heavy oil with a lower freezing point. Heavy oil enters the sludge oil tank. The oil gas enters the oil condenser and is liquefied into tyre pyrolysis oil. Pyrolysis oil falls into oil storage tank.
03 Combustible Gas Recovery
04 Carbon Black Collection
05 Exhaust Gas Treatment
Pyrolysis Vs. Other Tyre Recycling Methods
Existing tyre recycling methods mainly include rubber powder production, TDF(tyre-derived fuel) production, and use as construction fill material. These methods break down tyres into smaller-sized rubber products. However, waste tyres are not decomposed from the physical composition. Below is a comparison of these recycling methods with tyre to oil.
| Tyre Pyrolysis | Building Materials Use | TDF Production | Tyre Powder Production | |
|---|---|---|---|---|
| Processing Scale |  |
 |
 |
|
| Recycling Efficiency | |
|
|
|
| Application Diversity | |
|
|
|
| Clean & Sustainable | |
|
|
|
| Aggregate Rating | |
 |
|
 |
Pyrolysis Drives Industry Shift in Tire Recycling
Enables Systematic Tire Recycling
Pyrolysis offers a scalable solution for managing large volumes of end-of-life tires, transitioning tire disposal from fragmented collection to an integrated processing system.
Supports Circular Supply Chains
By converting waste tires into reusable industrial materials, pyrolysis plays a key role in establishing closed-loop supply chains across the rubber and fuel industries.
Aligns with EPR and Global Policy Trends
As more countries adopt landfill bans and Extended Producer Responsibility (EPR) schemes, tyre pyrolysis plant offers a compliant, low-emission solution with added benefits like green financing potential.
Economic and Environmental Benefits of Tyre Pyrolysis Plant
Avoid Negative Environmental Impacts
- Fire Risk: Scrap tyres are flammable hazardous waste. When burned, tyre release toxic dioxins, benzopyrene, and other harmful substances. Pyrolysis treatment decomposes waste tyres in an Non-flammable environment. Also, pyrolysis products are properly stored.
- Water Pollution: Waste tires piled up near water sources will produce harmful leachate. These harmful substances seep into groundwater or rivers, polluting water sources. In particular, tyre pyrolysis process can effectively avoid these pollution from tyre accumulation
Optimize Waste Management System
- Waste Reduction: Tyre pyrolysis plant can reduce the volume of tyres by 70%. As a result, this alleviates the management burden caused by tyre land occupation and stacking. This not only reduces the recycling pressure but also reduces transportation and storage costs.
- Waste Resource Utilization: Tyre pyrolysis products can be directly supplied to upstream & downstream industries. They can be applied directly or processed into more valuable products. This resource recycling method promotes the circular economy.
Enriching Traditional Energy Structure
- Alternative Fuel: Tyre pyrolysis oil is an alternative fuel with high energy density. In addition, after converting to non-standard diesel by distillation, it has widely use in heavy machinery, transportation, etc. Thus, waste tire pyrolysis machine promotes fuel diversity.
- Energy Transformation: Traditional fossil fuels, such as coal/natural gas/oil, are non-renewable. Pyrolysis oil production can reduce dependence on them. Meanwhile, it also reduces carbon emissions from resource mining, promoting energy transformation.
Create New Revenue Model
- Pyrolysis Product Sales: Tyre pyrolysis products are widely used in various fields and have high trading value. In particular, in recent years, the market demand for tire pyrolysis carbon black, as a raw material for the production of rCB (recovered Carbon Black), has continued to grow.
- Waste Treatment Income: Through large-scale production, investors can establish tyre pyrolysis recycling centers locally. As a result, investors can charge processing fees to tyre manufacturers, waste recycling centers, and municipal waste management to obtain income.
End-to-End Services for Tyre Recycling Solutions
Pre-sales Service
In-sales Service
After-sales Service
Technical Consultation
Beston technical advisory team provides integrated technical consulting services about tyre recycling.
Material Testing
We offer tyre sample testing and provide bilingual test reports for cooperator reference.
Customized Solutions
Beston technical advisory team designs and produces comprehensive and specialized tyre recycling solutions for cooperators.
Value-Added Technical Services
Beston technical service team provides various design layouts based on cooperator site conditions.
Delivery Notification
The material control team in factory keeps cooperator informed in real-time about waste tire pyrolysis machine production and delivery status.
On-Site Installation Guidance
The after-sales service team provides on-site guidance for installation, debugging, and training until the waste tire pyrolysis equipment is operational.
After-Sales Technical Consultation
The customer management team offers after-sales technical consultation services. We provide 24-hour online assistance to address cooperator requests.
Product Software Upgrade Services
Beston Group offers free control system product upgrade services. A single collaboration brings lifelong benefits.
Registered Qualifications – Before Starting Tyre Pyrolysis
You need to apply for some assessments and approval before you plan to start a tyre pyrolysis project. This is to ensure that the operation of the tyre pyrolysis plant complies with environmental, safety, and regulatory requirements. And this is also to safeguard public interests. The evaluation requirements vary by country. Here, we provide the common approval for your reference.
Operational Approval
MSME Registration
Operating Permit
Environmental Approval
EPR Registration
EIA
Air and Water Quality Monitoring
Safety Approval
Health and Safety Permit
Fire NOC
Construction Approval
HWA
Land Use & Building Permit
Factory License
Contact Us To Get Tyre Pyrolysis Solution
Utilizing a tyre pyrolysis plant for tire recycling is both resource-saving and environmentally friendly. If you’re seeking a practical solution, we’re here to help—share your recycling needs and let’s develop an effective tyre pyrolysis plan together. Contact us now for immediate assistance and the latest updates on LinkedIn.
