Palm Kernel Shell Charcoal Machine

Beston palm kernel shell charcoal machine is very popular on the market now. The machine uses the technology of carbonizing to make charcoal from palm kernel shell. Owing to the high value of utilization of palm kernel shell charcoal, this machine is very rewarding and it can help the investors earn money from palm kernel shells.

Palm Kernel Shell Charcoal Machine

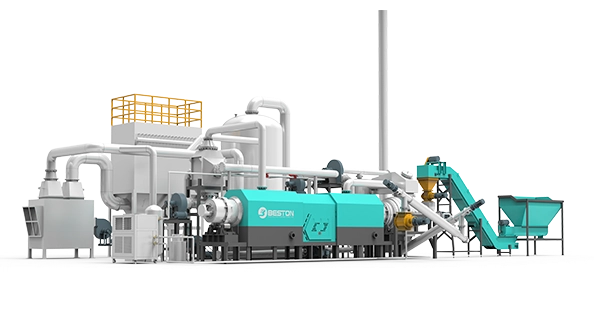

Beston Palm Kernel Shell Charcoal Machine for Sale

At present, Beston offers the following types of palm shell charcoal making machine for sale:

Input Capacity12m³/Batch18m³/Batch40m³/Batch0.3-0.5m³/h2-4m³/h7-9m³/h10-15m³/h
Working MethodBatchFully continuous
Raw MaterialsBiomass waste, such as wood, sawdust, coconut shells, olive shells, palm shells, bamboo, agricultural straw, sewage sludge, etc.
Reactor SizeΦ1900mm*L4500mmΦ1900mm*L6600mmΦ2800mm*L7100mmΦ830mm*L5500mmφ1300mm×L14051mmΦ1700mm*L14180mmΦ2000mm*L14260mm
Heating MaterialsDiesel, natural gas, LPG, biomass, etc.
Energy Consumption (Standard Configuration)11kw/h13.5kw/h25kw/h37kw/h49Kw/h52kw/h102kw/h
Installation Area Requst (L*W*H, Standard Configuration)9m*6m*6m12m*6m*7m15m*18m*7m10m*8m*3.9m29m*15m*5m30m*15m*8m35m*18m*9m
Weight (Standard Configuration)18T22T34T15T35T35T49T
Operating PressureSlight positive pressureSlight negative pressure
Service life5-8 years

Why You Should Choose Beston Palm Kernel Shell Charcoal Machine

High Quality and Strong Durability

  • We have a strict production line and examination line for every biochar production unit in Beston. All the parts of the machine will be detected by the ultrasonic flaw detector before leaving the factory.
  • High quality and durable materials. We use stainless steel 310S on the main host of carbonizing. And the board we use to produce the host is thicker than most other like machines on the market.

Original and Reasonable Design of Structure

  • Double-layer structure. The interior layer of the carbonization host is for the drying process and the exterior layer is for carbonizing. After the palm kernel shells are dried, they will be sent to the carbonization furnace for carbonization.
  • “One Fire Two Steps” heating structure. This structure will reduce a lot of fuel cost. Because the residual heat from carbonization process can supply heat to the upper layer continuously.

High-leveled Safety Design

  • Special casing for the drying host and carbonization host to prevent the operators from hurting.
  • A central control system to realize the separation of the operator and the machine.
  • A standard power control system to make sure the safe operation of the machine.
  • Sealed feeder and discharging system. All the important parts of the machine are sealed.


  • All the gases, including the combustible gas and the residual gas, will go through a strict filtering system before emission. The standard filtering system contains water spraying, water cleansing and dedusting. If the customers have to require a higher level emission standard, they can opt for adding the activated carbon absorption and ceramic ring absorption.
  • The palm shell charcoal machine itself is eco-friendly because it turns waste into fuel and creates values for them.
palm kernel shell charcoal making machine

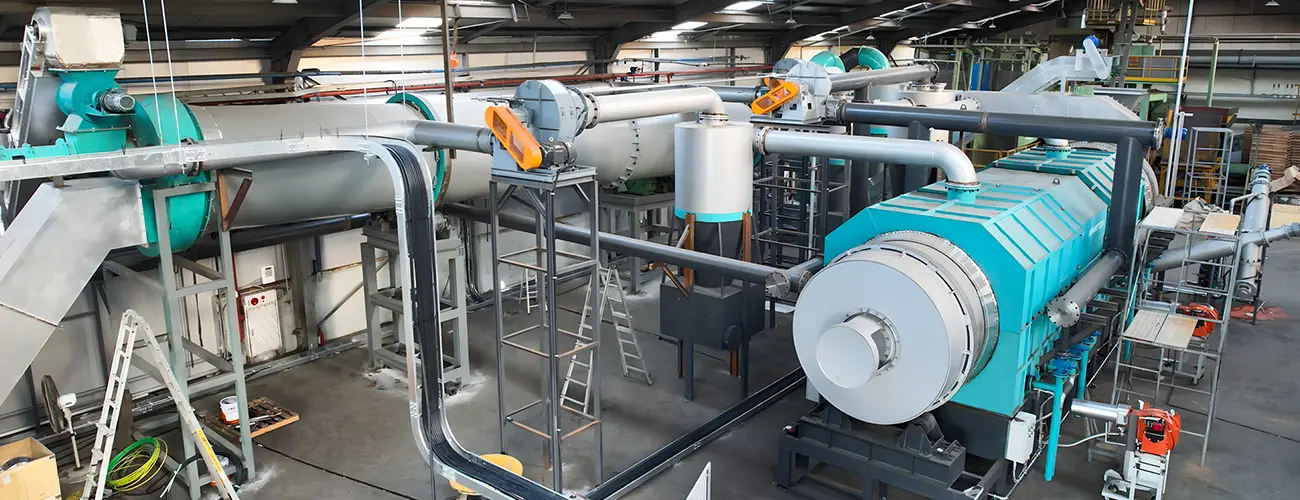

Beston Palm Kernel Shell Charcoal Making Machine Installed in China

Uses of Palm Kernel Shell Charcoal

  • Similar to wood charcoal, palm kernel shell charcoal can be used as fuel directly because of the high combustion rate. If you want, it can also be produced into palm kernel shell activated carbon.
  • This kind of activated carbon has a large specific surface area. The special pore structure enables it a stronger ability of absorption than most kinds of activated carbon.
  • Therefore, it can be widely used in many industries such as the decoloration of medicine, food and beverage, petroleum and organic solvent recycling and deodorization systems, water and purification industry, moisture-proofing and so on.
Palm Kernel Shell
Raw Material – Palm Kernel Shell
Palm Kernel Shell Charcoal
Final Product – Palm Kernel Shell Charcoal

Palm Silk Grain
Palm Silk Grain – Raw Material
Palm Charcoal
Palm Charcoal – Final Product

Obtain Good Palm Kernel Shell Charcoal Machine Price from Beston Group

Beston is well-known for the strong ability to produce high-quality palm kernel shell charcoal machines on the international market, thus we can make sure the customers obtain a palm shell charcoal machine with high-cost performance ration.

At the same time, we provide all around aftersales services to make sure customers cost much more worthy.

  1. The professional engineering team of installation and maintenance and a strong team of sales specialists.
  2. Professional training for the local workers.
  3. Regular visits to the customers place to check the situation of the machine after the machine starts to run formally.
  4. One year quality guarantee.
  5. 24 hours and 7 days online customer services.

Palm kernel shells are very common in subtropical and tropical areas. Using a palm kernel shell charcoal machine to turn them into useful things will be a great investment. If you have a large amount of palm kernel shell to dispose of, this machine will be your right choice. Besides, we also provide charcoal making machines to process other biomass waste like wood and coconut shells, you can leave your message to us freely about all your questions about the machine.
