Beston bamboo charcoal making machine can produce charcoal from bamboo. Similar to wood charcoal and coconut shell charcoal, bamboo charcoal plays important roles in many aspects of human activities and has a high market value. Therefore, if there is plenty of bamboo in your place and you want to make money from them, you can choose Beston bamboo charcoal machine. It will be an investment with a high ROI (rate of interest).
Various Bamboo Charcoal Uses: Bring Good Economic Profit
Bamboo charcoal is not activated carbon. It is a kind of carbon-rich thing. Through high-temperature biomass pyrolysis (carbonization) reactor, the bamboo will be converted into charcoal. See its wide applications.
Heating Fuel & BBQ & Hookah
Poultry Field
Soil Improvement
Carbon Sequestration
Metallurgical Industry
Water and Smell Purification
Heating Fuel & BBQ & Hookah:
Bamboo charcoal has a fixed carbon content of over 80%, making its calorific value about 30% higher than wood charcoal. Therefore, it suits to be:
- used as fuel in cement plants, power factory, brick plants, etc.
- used for BBQ or Hookah.
Poultry Field:
- Act as animal feed additives to improve animals’ digestion and health;
- Function in stockyard bedding to absorb odors and improve the environment;
- Absorb ammonia emitted by animals and their excrement.
Soil Improvement:
Bamboo biochar is a good material to improve soil quality. It can:
- improve soil aeration and drainage and enhance soil structure;
- increase nutrient retention and promote plants’ healthier growth and higher yields.
- regulate soil pH, etc.
Carbon Sequestration:
Bamboo biochar is rich in carbon and has a stable structure, allowing it to store carbon in the soil for many years. This long-term carbon sequestration helps reduce the harmful effects of carbon dioxide on the environment.

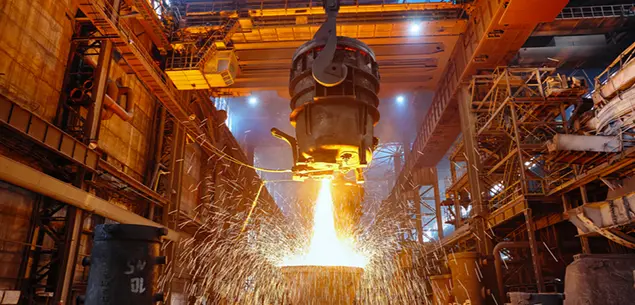

Metallurgical Industry:
Biochar serves as an eco-friendly reducing agent in metal smelting. It can replace traditional coke and coal, aiding in the removal of oxygen from metal ores and promoting metal extraction. Compared to fossil fuels, biochar offers the advantage of lower carbon emissions.
Water and Smell Purification:
Bamboo charcoal can be used in water purifying, household humidity adjustment, absorbing odor, retaining freshness and skin care, etc.
Align with SDGs: Eco-Friendly Bamboo Charcoal Production Investment
Investing in a bamboo charcoal making machine aligns with several Sustainable Development Goals (SDGs), enhancing both environmental and social outcomes. By supporting bamboo charcoal production and applications, you contribute to:
SDG 7: Affordable and Clean Energy
You gain clean biochar fuel and utilize syngas in production.
- reduce reliance on traditional coal and other non-renewable fuels;
- lower greenhouse gas emissions;
- provide a more eco-friendly fuel option.
SDG 12: Responsible Consumption and Production
You can recycle rapidly growing renewable bamboo waste as raw material to produce higher-value biochar. This promotes sustainable resource management and encourages a circular economy.
SDG 13: Climate Action
The use of bamboo charcoal in various applications aids in reducing greenhouse gas emissions, promoting climate resilience through carbon sequestration.
SDG 15: Life on Land
Bamboo biochar’s improvements to soil health can help restore degraded land and damaged ecosystems. This helps maintain biodiversity.
Prepare Suitable Bamboo Waste for Charcoal Making
Due to its unique characteristics and rapid growth, bamboo is an excellent raw material for charcoal production. The Beston bamboo biochar machine processes different kinds of waste bamboo, such as bamboo chips, poles, strips, fiber, sawdust, and pellets.
How to Make Bamboo Charcoal?
01Prereatment for Bamboo Materials
- Drying: Keep bamboo moisture is below 15% for better pyrolysis (carbonization) effect.
- Crushing and screening: Keep bamboo materials size is between 5mm and 20mm for faster reaction efficiency.
02Preheating Biochar Reactor
Preheat biochar reactor for 60 to 90 minutes. Once the desired temperature is reached, you can begin feeding the material. The pyrolysis reaction will produce enough syngas. The external heat source can be adjusted based on the amount of gas generated, allowing for timely shutdown.
Note: Initial heating can be done using diesel, LPG, or natural gas, but different burners need to be prepared accordingly.
03Feeding Bamboo into Reactor
04Bamboo Pyrolysis/Carbonization Process
Bamboo waste undergoes drying and partial carbonization inside the inner cylinder of the reactor. A screw mechanism then pushes the material into the outer cylinder, where complete carbonization occurs. Finally, the screw pushes the material to the discharge outlet.
- Reaction Duration: Approximately 15 to 25 minutes.
- Reaction Temperature: 380°C to 450°C.
05Bamboo Biochar Discharging
Customers can choose whether to collect wood tar and wood vinegar based on their needs.
06SynGas & Emission Gas Treatment

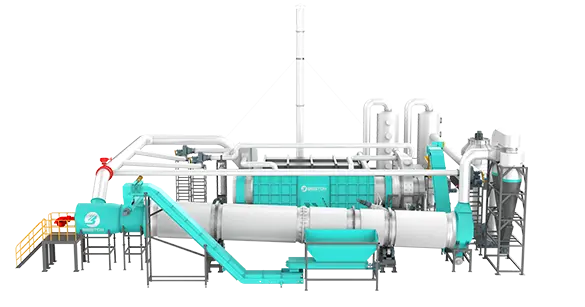

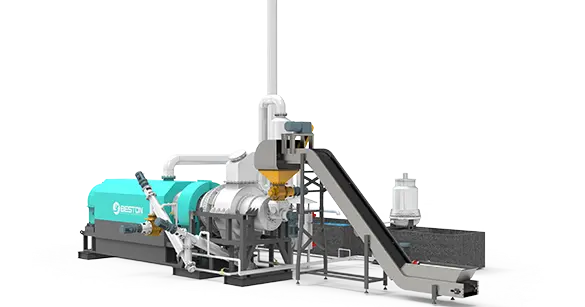

2 Models of Bamboo Charcoal Making Machine for Selection
| Model | BST-06 | BST-50 |
|---|---|---|
| Input Capacity | 0.3-0.5m³/h | 10-15m³/h |
| Reactor Size | φ820mm*L11200mm | φ2000mm*L14260mm |
| Land for Equipment (L*W*H, Standard Configuration) | 25m*15m*8m | 35m*18m*9m |
| Weight (Standard Configuration) | 21T | 49T |
| Energy Consumption (Standard Configuration) | 153kw/h*0.7 | 191kw/h*0.7 |
| Working Method | Fully continuous | |
| Feeding Requirement | Size: ≤20mm; moisture: ≤15%; strong liquidity | |
| Structure | Double barrel double hearth | |
| Speed | 1-9RPM | |
| Control Method | PLC control | |
| Reactor Material | Stainless steel 304 | |
| Pressure | Micro negative pressure | |
| Heating Material | Diesel, natural gas, heavy oil, biomas, etc. | |
| Heating Method | Direct heating | |
| Noise (dB) | ≤80 | |
| Condenser | Circulating water cooling | |
| Rotation Method | External gear rotation | |
Note: All the parameters are subject to the customer’s configuration; The dimensions are subject to the site layout.
Optional Bamboo Charcoal Briquette Machine: Add Value with Ease
A bamboo charcoal briquette machine significantly enhances the value of bamboo charcoal by transforming loose bamboo biochar powder into compact, energy-dense briquettes (rod, spherical, cubic, and hexagonal shapes, etc.). Here’s how it boosts the utility and value of bamboo charcoal:
Higher Energy Density
Briquetting bamboo charcoal increases its energy density, making it an efficient and longer-burning fuel. This characteristic makes bamboo charcoal briquettes popular for cooking, heating, and industrial uses, providing a cost-effective alternative to conventional fuels like coal or wood.
Compact Form and Easy Storage
Bamboo charcoal briquettes are compact and uniform, allowing for easier storage, transportation, and handling compared to loose bamboo charcoal. This consistency appeals to customers, especially in bulk, because it reduces wastage and facilitates efficient storage.
Higher Market Value
Briquetting adds significant commercial value to bamboo charcoal by creating a refined product that’s ready for diverse uses. Compared to raw bamboo charcoal, briquettes fetch a higher price in the market, especially with increasing demand for eco-friendly alternatives.
Factory Testing: Actual Operation of Bamboo Charcoal Machine
Test Report of Resulting Bamboo Biochar
Indicator introduction: What You Should Concern
Fixed Carbon Content
The fixed carbon content in bamboo pyrolysis biochar is a crucial indicator of its quality. Higher fixed carbon content suggests a more stable biochar, which effectively sequesters carbon and contributes to reducing greenhouse gas emissions.
Volatile Matter Content
The volatile matter content of biochar provides insights into its carbonization degree. Lower volatile matter indicates higher carbonization, enhancing the stability and durability of the biochar for long-term applications.
Ash Content
Ash content is an important measure of biochar purity. A lower ash content reflects a higher quality biochar, which is more desirable for soil applications.
Sulfur Content
Sulfur content does indeed directly affect the application of biochar. Generally, lower sulfur levels are preferable, as they can reduce the negative environmental impacts of biochar during use.
Laboratory Report on Bamboo Biochar
You can see the carbonized bamboo biochar has high fixed carbon content, low sulfur content, and relatively low ash and volatile matter content. This implies high quality.
| Results: | |
|---|---|
| Assay NO | 1# |
| Kind | Bamboo |
| Whole water Mt% | 6.98 |
| Analytical water Mad% | 1.74 |
| Dry basis ash Ad% | 16.62 |
| Volatile matter on a dry basis Vd% | 18.2 |
| Dry basis fixed carbon Fcad% | 63.44 |
| Sulfur content on a dry basis St.d% | 0.02 |
| Coking characteristics 1-8CRC | 1 |
| New national standard calorimeter dry basis high calorific value kcal/kg | 5679 |
| The new national standard calorimeter method receives the base low calorific value kcal/kg | 5171 |
| Remarks:**degrees Celsius Out of water and oil, the highest temperature **degrees Celsius The above data is for reference only. | / |
NOTE: This report is not live and is for informational purposes only. And the type of bamboo and moisture will affect the carbonization results. If you would like to get a prepared report, you can send samples to Beston Group.
Global Bamboo Pyrolysis Cases

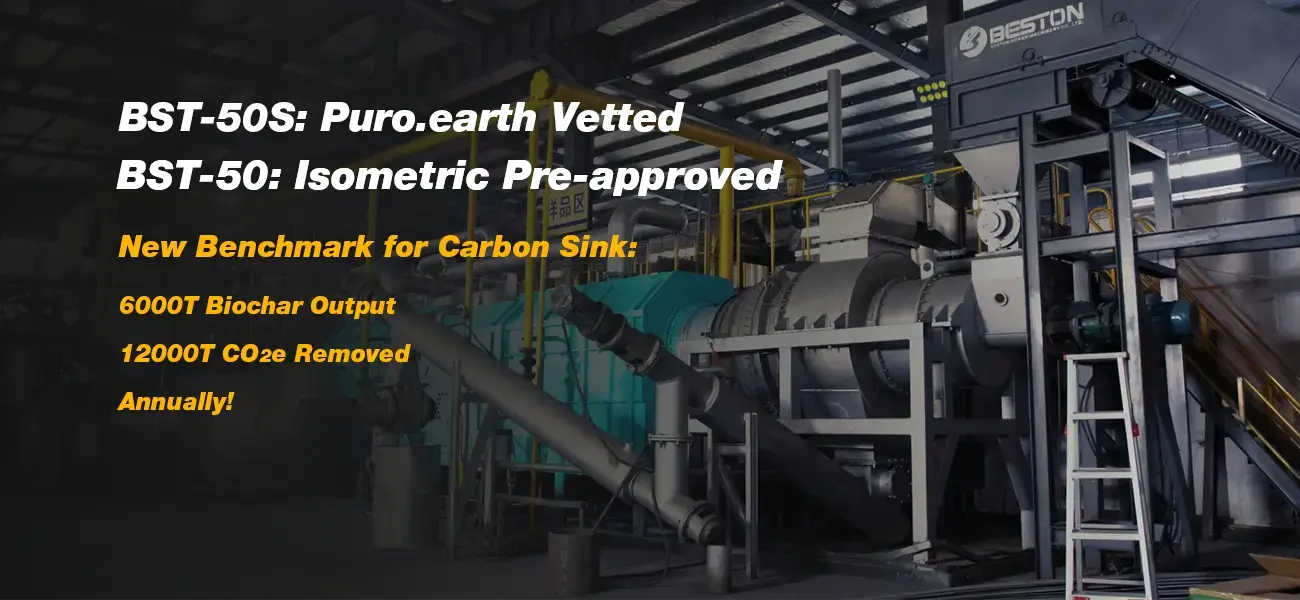

1. BST-50 Bamboo Charcoal Making Machine Shipped to Brazil
- Project background: Bamboo resources are abundant in this country. This customer wanted to put the raw materials to good use.
- Solution: BST-50; 10-15m³ large processing capacity per hour
- Shipping date: August 2023
2. Bamboo Charcoal Making Solution Applied in Indonesia
- Indonesia customer background: This customer has a substantial supply of bamboo poles, with moisture content exceeding 15% and large size.
- Solution: Continuous bamboo charcoal machine + crusher + dryer
- Results: In 2023, June, the installation trial operation was conducted smoothly. The customer is satisfied with the carbonized bamboo charcoal which is good quality.
3. Beston Carbonization Solutions Applied to the Global World
Not limited to bamboo waste, Beston charcoal making solutions also extend to other biomass waste recycling. We have achieved cooperation projects in 50+ countries. These customers have good reviews after receiving the machines and finishing the installations. Please see some cases.
Key Advantages of Beston Bamboo Charcoal Production Machine
Get a Quote for Bamboo Charcoal Machine Today!
Contact Beston Group now for customized bamboo charcoal production solutions! You don’t need to worry about drawing designs, machine installation, commissioning, or operation training—we’ve got you covered. Stay informed about our latest updates by following us on Linkedin. For inquiries about our equipment and solutions, please share your specific requirements.
