Pyrolysis reactor is the core unit of a pyrolysis plant, where waste plastic, waste tyres and oil sludge are heated in an oxygen-deficient environment and converted into pyrolysis oil, syngas and solid residue. Beston Group’s reactors use an indirectly heated rotary kiln design, available as continuous (Blackgold P30) or batch (BLJ-20, BLJ-16) models. Find the pyrolysis reactor that fits your feedstock, and capacity below.

Pyrolysis Reactor Types for Complete Pyrolysis Line

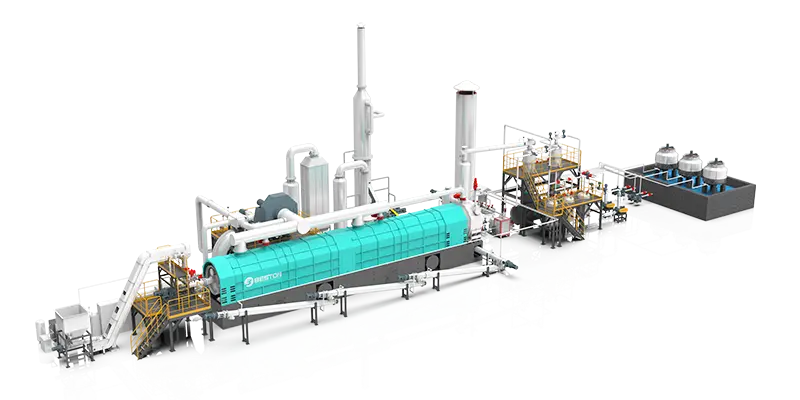

Blackgold P30 Pyrolysis Reactor
Perform pre-startup checks for Blackgold P30

Continuous Reactor: Blackgold P30

  • Cycle Duration: 30 days/cycle, 300 operating days per year
  • Oil Output: Light Oil & Non-standard Diesel
  • Annual Processing Capacity:
    – Waste Plastic: 6,000 tons
    – Waste Tyre: 10,000 tons
    – Oil Sludge: 12,000 tons

BLJ-20 Pyrolysis Reactor
Factory prototype undergoing PP plastic testing

Batch Reactor: BLJ-20

  • Batch Duration: 1 day
  • Oil Output: Light Oil & Non-standard Diesel
  • Annual Processing Capacity:
    – Waste Plastic: 4,000 tons
    – Waste Tyre: 6,000 tons
    – Oil Sludge: 7,500 tons

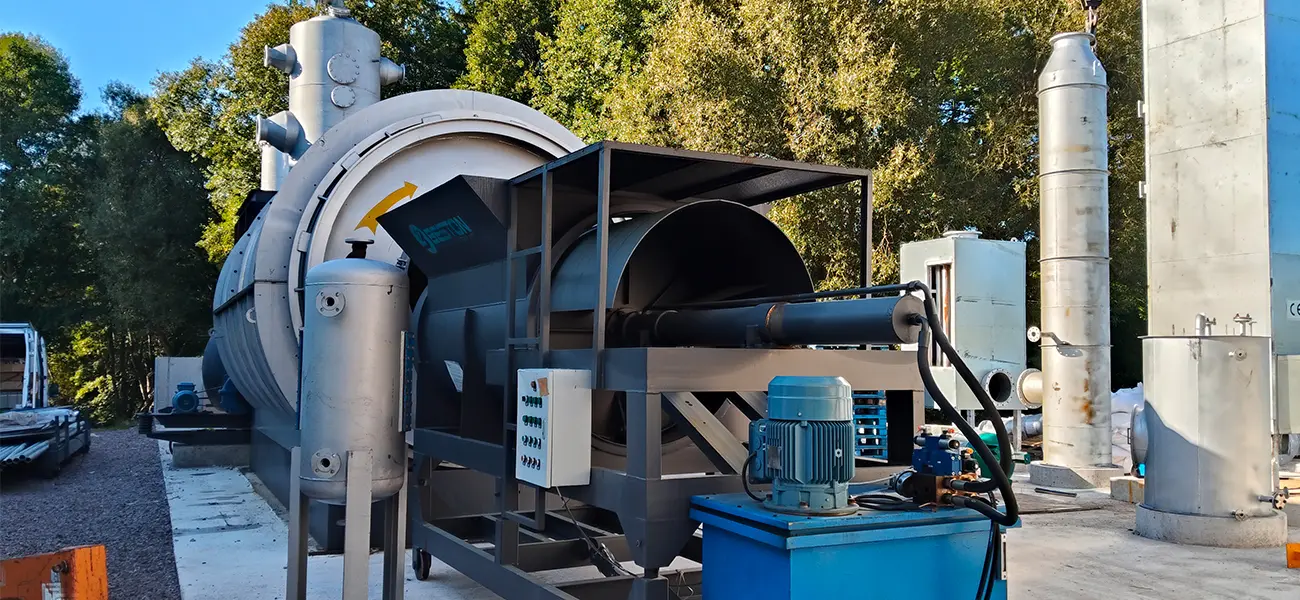

BLJ-16 Pyrolysis Reactor
Pyrolysis reactor for processing OBM in Africa

Batch Reactor: BLJ-16

  • Batch Duration: 1 day
  • Oil Output: Pyrolysis Oil
  • Annual Processing Capacity:
    – Waste Plastic: 3,000 tons
    – Waste Tyre: 4,000 tons
    – Oil Sludge: 6,000 tons
ModelBlackgold P30BLJ-20BLJ-16 StandardBLJ-16 TDUBLJ-16 WAXBLJ-16 ULTRA
Time to Market202620252013201320222022
Motor BrandChinese brandChinese brandChinese brandChinese brandChinese brandABB Explosion-proof
Suitable Raw MaterialsWaste plastics; Tires; Oil sludgeWaste plastics; Tires; Oil sludgeWhole tire<120cm;
Tire blocks<15cm;
Oil soil with liquid content<30%
Oil sludge; Landing oil sludge; Drilling waste; Tank bottom oil sludgeWaste plastic bales
(Max.0.9*0.9*1.6m)
Waste plastics; Tires; Oil sludge
Input Capacity (Max.)Waste plastic pellets: 0.8-1.05t/h;
Rubber powder: 1.25-1.5t/h;
Oil sludge:1.8-2.3t/h
Waste plastic pellets: 12-13t/d;
Tire: 18-20t/d;
Oil sludge:20-25t/d
Whole tire <120cm or Tire blocks<15cm: 10-12t/batch;
Sidewall removed tire: 15-16t/batch;
Oil soil: 16-18t/batch
16-18t/batch8-10t/batchWaste plastic bales: 8-10t/batch;
Whole tire <120cm or Tire blocks<15cm: 10-12t/batch;
Sidewall removed tire: 15-16t/batch;
Oil sludge: 16-18t/batch
Working MethodFully ContinuousBatchBatchBatchBatchBatch
Final Oil QualityPyrolysis oil;
Pyrolysis oil with light oil;
Gasoline blending components
Pyrolysis oil;
Pyrolysis oil with light oil
Pyrolysis oilPyrolysis oilPyrolysis oilPyrolysis oil;
Pyrolysis oil with light oil
Reactor Material304/310S Stainless steelQ345R Boiler steel and 304/316L/310S Stainless steelQ345R Boiler steel304 Stainless steel304 Stainless steel304 Stainless steel
Reactor Life Span (Years)5-8 YearsQ345R Boiler steel: 2-3 Years;
304/316L Stainless steel: 5-8 Years;
310S Stainless steel: 8-10 Years
2-3 Years5-8 Years5-8 Years5-8 Years
Guarantee (Months)121212121212
Delivery Time (Calendar Days)60-906045606090
Land Space Required (L*W*H*m)50*20*1040*13*833*13*833*13*833*13*833*26*8
Packing20*6*3m in bulk+13*40HQ1*40FR+4*40HQ1*40FR+3*40HQ1*40FR+3*40HQ1*40FR+3*40HQ1*40FR+8*40HQ
Installation Period (Calendar Days)60-904545454560

How Different Feedstocks Behave in the Pyrolysis Reactor

Pyrolysis Products of Plastic Bottle Caps
Plastic Bottle Caps and Pyrolysis Products (Source: Beston Lab)

Waste Plastic

  • Types: PE, PP, PS and other plastics, as pellets or baled waste.
  • Main products: Oil (~80%), syngas and industrial residues.
  • Suitable models: Blackgold P30, BLJ-20, BLJ-16 WAX / ULTRA
  • What to Check Before Processing:
    – Chlorinated plastics such as PVC corrode equipment, and the oil may carry a dioxin risk.
    – PET yields almost no oil, and its oxygen content upsets the oxygen-deficient reaction environment.

Pyrolysis Products of Tank Bottom Sludge
Tank Bottom Sludge and Pyrolysis Products (Source: Beston Lab)

Oil Sludge

  • Types: Drilling waste, tank sludge, oil-contaminated soil.
  • Main products: Oil, syngas and harmless residue.
  • Suitable models: Blackgold P30, BLJ-20, BLJ-16 TDU / ULTRA
  • What to Check Before Processing:
    – High moisture sludge raises energy consumption, so centrifugal dewatering is needed beforehand.
    – Heavy metals may remain in the residue, which must be tested and disposed of according to local regulations.

Pyrolysis Products of Tire Granules
Tire Granules and Pyrolysis Products (Source: Beston Lab)

Waste Tyre

  • Types: Whole tyres, tyre blocks or rubber powder.
  • Main products: Oil(35%~45%), carbon black and steel wire.
  • Suitable models: Blackgold P30, BLJ-20, BLJ-16 Standard / ULTRA
  • What to Check Before Processing:
    – Pyrolysis carbon black is not rCB (recovered carbon black); higher-grade carbon black needs back-end processing.
    – Continuous equipment needs the steel wire removed at the front end, and the feed is tyre rubber powder.

How the Reaction Mechanism Shapes Pyrolysis Reactor Design

Inside the pyrolysis reactor, feedstock breaks down in an oxygen-deficient environment in three stages. Each stage puts specific demands on the pyrolysis machine design.

NO.1 Molecular Chain Cracking

Long molecular chains break into smaller fragments and free radicals.


Design Requirements

  • Stable Gaseous Environment
    Maintain slight positive pressure and oxygen-deficient conditions for efficient pyrolysis.
  • Corrosion Resistance
    Materials graded by feedstock resist heat and impurities, extending main furnace life.

NO.2 Oil Gas Formation

Cracked hydrocarbons form oil gas; carbon number decides light or heavy fractions.


Design Requirements

  • Multi-layer Sealing
    The furnace remains airtight while rotating, preventing oil gas leakage and open flames hazards.
  • Wax Blockage Prevention
    Heavy wax fractions stay fluid, keeping oil-gas passages clear for stable operation.

NO.3 Solid Formation

The non-volatile fraction (fixed carbon and inorganic matter) remains as solid residue.


Design Requirements

  • Anti-Coking
    Coke on the furnace wall is cleared, keeping heat transfer efficient and heating uniform.
  • Hydrocarbon-free Discharge
    Hydrocarbons are removed from the solids, leaving residue safe to dispose of or reuse.

Reaction Mechanism of Pyrolysis Reactor

Pyrolysis Reactor Technologies for Safe and Stable Operation

Beston Group’s pyrolysis reactor meets high-standard design requirements through four core technologies. Continuous and batch models pursue the same goals with different solutions.

Gas Environment Control

  • Continuous Model: Sealed feeding conveyor with nitrogen purging to displace excess air, keeping the furnace oxygen-deficient.
  • Batch Model: During cooling, a nitrogen system balances furnace pressure and displaces residual oil gas, preventing flash explosion when air enters.

Furnace Coking Mitigation

Continuous and batch reactors share the same two design principles:

  • Physical Friction: Gravity-friction mechanical decoking inhibits coke layer buildup inside the reactor.
  • Uniform Heating: Precise pyrolysis temperature control keeps heating even and prevents localized overheating.

Adaptive Thermal Sealing

  • Continuous Model: Self-regulating mechanical sealing that compensates automatically for varying thermal deformation.
  • Batch Model: Thermal dynamic sealing and flexible high-temperature insulation enhance sealing and insulation performance.
Newly Launched Blackgold P30 Featuring an Advanced Pyrolysis Reactor Design
Beston Group Newly Launched Blackgold P30 Featuring an Advanced Pyrolysis Reactor Design

Main Components of Pyrolysis Reactor for Sale

Basic Structure of Pyrolysis Reactor

01⭐ Main Furnace

Main furnace provides a reaction environment for the pyrolysis of raw materials. The raw materials are thermally decomposed in the main furnace to produce oil gas. As the core component of pyrolysis chamber design, the furnace adopts high temperature resistant material selection, strict pressure control and precise sealing design.

02Drive System

The device consists of a drive motor, a reducer, and a spring seat. It provides power for the reaction furnace to rotate. Motor drives the reducer to make the main furnace rotate steadily. The spring seat ensures perfect gear meshing.

03Base

The base provides a stable support structure for the rotation of pyrolysis reactor. In addition, the combustion chamber is directly inside the base. The integrated design reduces the intermediate loss of heat energy and improves thermal efficiency.

04Burner

The burner provides the necessary heat energy for the preheating and pyrolysis process of the main furnace. Its fuel includes LPC, natural gas, pyrolysis oil, heavy oil, diesel, non-condensable combustible gas recovered during the production process, etc.

05Casing

The casing provides the necessary structural support for the entire device. In addition, it attaches high-temperature ceramic wool. Therefore, the casing reduces the heat loss of the pyrolysis reactor during the heating process.

Pyrolysis Reactor Cost Analysis: Continuous vs. Batch

Continuous Pyrolysis Reactor

Continuous Reactor

  • Furnace Design: Large 310S stainless steel furnace. High manufacturing cost of pyrolysis plant. Suited for long-term operation.
  • Manufacturing Complexity: Complex internal structure. Precise welding and sealing required. Longer manufacturing cycle costs.
  • Technology Integration: Equipped with high-cost automation systems. Reduces labor intensity and lowers skill requirements.
  • Component Requirements: Many internal liners, seals, and precision parts. Raises costs of the pyrolysis reactor.
Batch Pyrolysis Reactor

Batch Reactor

  • Furnace Design: Medium furnace. 310S, 304, or Q345R optional. Lower investment and fits small-scale production.
  • Manufacturing Complexity: Simple structure. Easy manufacturing and fast assembly. Lower costs and quick to deploy.
  • Technology Integration: Lower technology investment. Operation relies more on manual skills and labor.
  • Component Requirements: Simple internal structure and fewer components. Easier maintenance and lower reactor costs.

Pyrolysis Reactor Compliant with International Standards

 ISO 9001 Certification
ISO 14001 Certification
CE Certification for Pyrolysis Plant BLJ and BLL Series

Global Waste Management Solution: Beston Group in Action

As an industry-leading pyrolysis reactor manufacturer, Beston Group continues to contribute to the global waste recycling industry. We are constantly committed to the R&D of cutting-edge pyrolysis technology. In addition, Beston Group holds a customer-centric development philosophy. Everything we do is for the long-term success of our customers’ projects. The following are successful pyrolysis projects of global customers for your reference:

FAQs of Pyrolysis Reactor

01What furnace materials are available, and what temperatures can they withstand?

Three options: Q345R (up to 450℃), 304 stainless steel (600–700℃) and 310S stainless steel (up to 1035℃).

02What reaction temperature does each feedstock need?

Waste tyres react at 280–320℃, and waste plastics generally at no more than 400℃. Oil sludge varies widely by composition, so lab testing is recommended.

03How do operating conditions affect pyrolysis products?

For maximum oil yield, use low-and-slow heating. For maximum syngas yield, use high-heat rapid heating.

04What fuels can be used to preheat the reactor?

Natural gas, diesel or heavy oil, each with a matching burner. Once pyrolysis stabilizes, the reactor switches to its own syngas as the heat source.

05What systems make up a complete pyrolysis plant?

A complete plant has systems including feeding, pyrolysis reactor, oil gas buffering, oil gas condensing, waste gas treatment and residue discharge, all managed by a central control system.

Beston Group: Your Ideal Supplier for Pyrolysis Reactor

Pyrolysis reactor represents a significant advancement in waste management technology. It offers a versatile and efficient solution. As a professional manufacturer, Beston Group continues to push the boundaries of pyrolysis technology with innovative solutions. Our equipment is an excellent investment option for your waste recycling project. We welcome you to become our partner. Visit us on LinkedIn for more information about Beston pyrolysis reactor for sale.
