In the increasingly serious situation of waste tire disposal, tyre to oil plant brings a solution. On the premise of processing large quantities of tires, pyrolysis technology also protects the environment. In addition, as the main product of the machine, tire pyrolysis oil has huge market potential. As a sustainable energy source for sale, it can alleviate many industries’ dependence on traditional fossil energy. Therefore, the economic value brought by the machine is the reason why many investors choose it.
What is Tyre to Oil Plant?

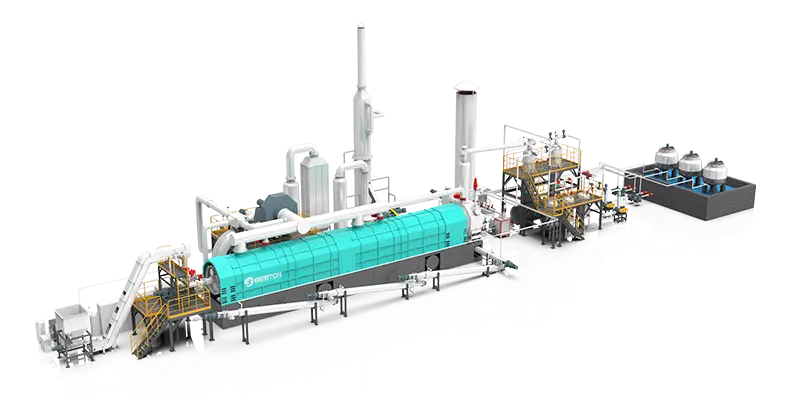

Tyre to oil plant, also known as tyre pyrolysis plant, is an environmentally friendly equipment. Generally, this kind of machine aims to convert scrap tyres into useful resources such as pyrolysis oil, carbon black, and steel wire. Additionally, the plant uses a pyrolysis process that involves heating the tyres in a low-oxygen, micro-pressure environment. The rubber in tyres breaks down into smaller hydrocarbon molecules under high-temperature thermal desorption. Finally, the oil and gas mixture in the reactor is processed to form pyrolysis oil. Compared to landfilling and incineration, this machine provides an eco-friendly solution for waste tire disposal.
Applications of Tire to Oil Recycling Products
Tire to oil recycling is a process that involves converting waste tires into useful products like pyrolysis oil, carbon black, steel wire, and combustible gas. The products derived from the tire to oil machine have various applications:
Tyre Pyrolysis Oil
It can be directly burned as an industrial fuel and is generally sold to glass factories, steel factories, ceramic factories, cement factories, etc.;
After distillation, non-standard diesel is obtained and sold to refineries for further processing to produce commercial diesel;
After distillation, non-standard diesel components can be used in heavy oil generator sets to generate electricity.
Carbon Black/Steel Wire/Combustible Gas
| End-products | Usages |
| Carbon black | 1. Direct sales. |
| 2. Used in the rubber and plastic industries to manufacture reinforcements, fillers, and colorants. | |
| 3. Used for deep processing to obtain higher-quality carbon black. | |
| Steel wires | 1. Direct sales. |
| 2. Used in steel mills to produce steel products. | |
| Combustible gas | Reused in the process of pyrolysis. |
Parameter of Beston Waste Tyre to Oil Plant for Sale
With years of export experience, Beston Group continues to optimize its product system to meet customer needs. Therefore, we offer our customers a variety of tyre recycling into fuel oil options. Our machines can be divided into four types, including skid-mounted, batch, semi-continuous and continuous. Because they use different designs and technologies, the tyre to oil plant cost is also different. The cost of the machine starts at $45,000. Below are the basic parameters of these machines to help you learn more.
| Model | BLJ-3 | BLJ-6 | BLJ-10 | BLJ-16 | BLL-16 | BLL-30 | |
| Capacity | 1-3t/d | 4-6t/d | 8-10t/d | 12-16t/d | 8t/d (only for rubber powder) | 30-35t/d | |
| Working Process | Batch | Batch | Batch | Batch | Semi-continuous | Fully continuous | |
| Reactor Size | φ1400*4900mm | φ2200*6000mm | φ2600*6600mm | φ2800*7100mm | φ2800*7100mm | φ1800*18500mm | |
| Reactor Material | Q245R | Q245R | Q245R | Q245R | Q245R | 310S stainless steel | |
| Drive System | 350 reducer+4kw drive motor | 400 reducer+5.5kw drive motor | 400 reducer+5.5kw drive motor | 500 reducer+7.5kw drive motor | 500 reducer+7.5kw drive motor | ZQH650-50 reducer+15kw frequency conversion motor | |
| Land (L*W*H) | 18m*4.2m*6m | 30m*12m*8m | 30m*13m*8m | 33m*13m*8m | 33m*13m*8m | 70m*20m*10m | |
| Power | 16.65kw | 37.85kw | 44.3kw | 55.6kw | 55.6kw | 256kw | |
| Burner | 2*200,000 kcal | 2*300,000 kcal | 2*300,000 kcal | 2*400,000 kcal | 2*400,000 kcal | 2.5 million kcal per set | |
| Total Weight of Shipped Materials | About 18t | About 24.5t | About 28t | About 34.5t | About 34.5t | About 150t | |
| Number of Containers | 1*40HQ | 1*40FR+1*40HQ+1*20 GP | 1*40FR+2*40HQ | 1*40FR+2*40HQ | 1*40FR+2*40HQ | 25m*8m bulk cargo+8*40HQ | |
| Noise (dB) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | |
| Heating Materials | Fuel oil (including tyre/plastic pyrolysis oil), natural gas, LPG, diesel, etc. | ||||||
| Condensing System | Vertical Condenser | φ426*3000 Single piece condensing area 7.58m2 | φ630*3600 Single piece condensing area 17.8m2 | φ630*3600 Single piece condensing area 17.8m2 | φ820*3600 Single piece condensing area 35.6m2 | φ820*3600 Single piece condensing area 35.6m2 | φ920*3200 2 sets of vertical condenser |
| 3-in-1 Condenser | 3000*2200*2250 Condensing area 17.51m2 | 5800*2260*2500 Condensing area 35.85m2 | 5800*2260*2500 Condensing area 35.85m2 | 8000*2260*2500 Condensing area 49.5m2 | 8000*2260*2500 Condensing area 49.5m2 |
||
Note: Machine parameters are for reference only. Therefore, you need to determine the specific configuration plan based on your actual situation. If you have needs in this area, please contact our project consultants.
Oil Rate Report of Beston Tyre Oil Plant
As an important performance indicator of a tire oil plant, the oil rate determines the cost-effectiveness of the investment. A machine with an excellent oil rate will produce more tire pyrolysis oil. Thereby creating more economic value. Beston Group has been committed to developing equipment with higher production efficiency. Therefore, we do experiments based on different types of tire raw materials. Below is the experimental data from Beston’s technical team for your reference.
| Raw material | Details | Oil rate | Steel wire | Carbon black | Gas/water |
| Waste tire | Truck tires | 45%-50% | 15%-20% | 30% | 5%-10% |
| Car tires | 40%-45% | 10%-15% | 40% | 5%-10% | |
| Bicycle/motorcycle tires | 30%-35% | 5%-10% | 10% | 5%-10% |
Tyre to Oil Recycling Process
If you want to understand the tyre to oil recycling process, it is more intuitive to start with the system structure of the equipment.
Feeding System
You can choose to feed manually or use a screw feeder/hydraulic feeder. After sending the raw materials into the furnace, close and lock the furnace door. It is worth mentioning that the feed to the continuous tyre pyrolysis plant is completely uninterrupted.
Pyrolysis System
The burner and the combustible gas generated after the reaction provide the heat source for the main furnace. The reactor maintains normal pressure/slightly positive pressure, and the reaction temperature is between 280°C and 300°C. In a closed oxygen-free state, the pyrolysis reaction begins. This process produces fuel oil, combustible gas, and solid residue products.
Condensation System
The oil channel condenser cools and liquefies the high-temperature pyrolysis oil gas to obtain pyrolysis oil. Subsequently, it is in the storage tank. The manifold purifies and stabilizes the non-condensable gas. After the reaction is stable, the gas heats the main furnace.
Flue gas treatment System
The high-temperature flue gas in the main furnace first enters the induced draft fan. Then, it introduces the flue gas into the flue gas cooler to cool down. Finally, the flue gas enters the spray tower for treatment. In this way, the flue gas can meet emission standards.
Water-Cooled Slag Discharging System
The solid slag in the furnace enters the water-cooled spiral slag tapper through the inner copy plate of the main furnace. After it cools down, the machine transports the carbon black out of the main furnace. Coupled with multiple water-cooled spiral slag discharges, the entire production can achieve high-temperature slag discharge and high-temperature feeding.
Tyre to Oil Recycling Process
Components of Tyre to Oil Plant
3D Demonstration Video of Waste Tyres to Oil
Below is the workflow of the entire tire to oil production line. If you want to learn more about tire recycling advice, you can visit our YouTube.
Profit Analysis of Tire Oil Plant Project
If you want to know whether investing in Beston waste tyre to oil plant is profitable? Our answer is: Yes! Our reasonable machine costs lay a good foundation for your initial investment. In addition, due to our excellent pyrolysis technology, high-quality tire pyrolysis oil can also earn more profits. Once you reach cooperation with Beston Group on the tyre to oil project, we will provide you with cost-effective configuration solutions based on your production scale and budget. Not only that, our professional project team also estimates the cost of running your project in advance. Below is a profit analysis table of a BLJ-16 tire recycling project for your reference.
| Return on Investment of BLJ-16 Tyre Pyrolysis Project in Europe | |||||||
| Introduction | According to the market data of Europe, the estimated ROI report, the various expenses are as follows: | ||||||
| Fixed Investment Cost | Item | Details | Unit | Unit Price/USD | Quantity | Amount/USD | Remark |
| Equipment | BLJ-16 | Set | 89000 | 1 | 89000 | ||
| Transportation | Seafreight | Set | 64600 | 1 | 64600 | ||
| From Port to Site | Set | 5800 | 1 | 5800 | |||
| Customs Tax | 0.15 | Set | 13350 | 1 | 13350 | ||
| Installation | Beston technician's salary | Day | 350 | 50 | 17500 | ||
| Round-trip aritickets | Ea | 3820 | 2 | 1640 | |||
| Visa | Ea | 750 | 1 | 750 | |||
| Local welder | Day | 120 | 100 | 12000 | 2 welders are needed | ||
| Local plumber | Day | 120 | 20 | 2400 | |||
| Local labor | Day | 108 | 50 | 5400 | |||
| Crane forklift | Day | 160 | 30 | 4800 | |||
| Materials | Installation materials ready | Set | 5200 | 1 | 5200 | Foundation, pipe, etc. | |
| Licenses | / | Ea | 2000 | 1 | 2000 | Environmental, firefighting, etc. | |
| Workshop | 500 | ㎡ | 380 | 500 | 190000 | ||
| Total Amount | $452440.00 | ||||||
| Operating Cost | Raw Materials | Waste tyre | Ton | 0 | 12 | 0 | |
| Water | / | m³ | 0.39 | 3 | 1.17 | ||
| Electricity | / | KWH | 0.2 | 864 | 172.8 | ||
| Fuel | Natural gas | Liter | 0.77 | 240 | 184.8 | ||
| Labor | / | People | 72 | 4 | 288 | ||
| Maintenance | / | Day | 85 | 1 | 85 | ||
| Depreciation | 8 years | Day | 175.18 | 1 | 175.18 | ||
| Tax | 5% | 0 | |||||
| Total Amount | $906.95 | ||||||
| End Products Price | Tyre oil | 45% | Ton | 5.4 | 433 | 2338.2 | 45% of input |
| Steel Wire | 15% | Ton | 1.8 | 216 | 388.8 | 15% of input | |
| Carbon black | 3% | Ton | 3.6 | 162 | 583.2 | 30% of input | |
| Subsidy | Ton | 100 | 12 | 1200 | |||
| Total Amount | $4510.2 | ||||||
| Daily Income | $3603.25 | ||||||
| Monthly Income | Working day | Day | 25 | $90081.17 | |||
| Yearly Income | Working day | Day | 300 | $1080974 | |||
Beston Global Cases: Export Tire Oil Machine Worldwide
Founded in 2013, Beston products have been exported to more than 100 countries. Meanwhile, they are widely used in the global waste recycling industry. In particular, we provide many customers with sustainable tire recycling solutions. More than just supplying equipment, Beston Group is committed to the long-term success of our customers. Therefore, we have reached stable cooperative relationships with some customers. In addition, our guaranteed after-sales service system is also the reason why customers choose Beston tyre to oil plants. Here are some successful cases for your reference.
If you also want to make money through tire-to-oil recycling projects, please leave your contact information and needs. Our project consultants will respond to you within 24 hours.
