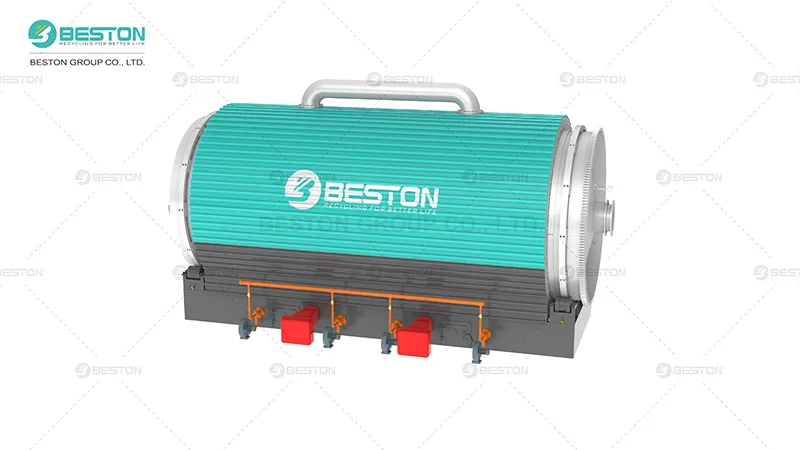

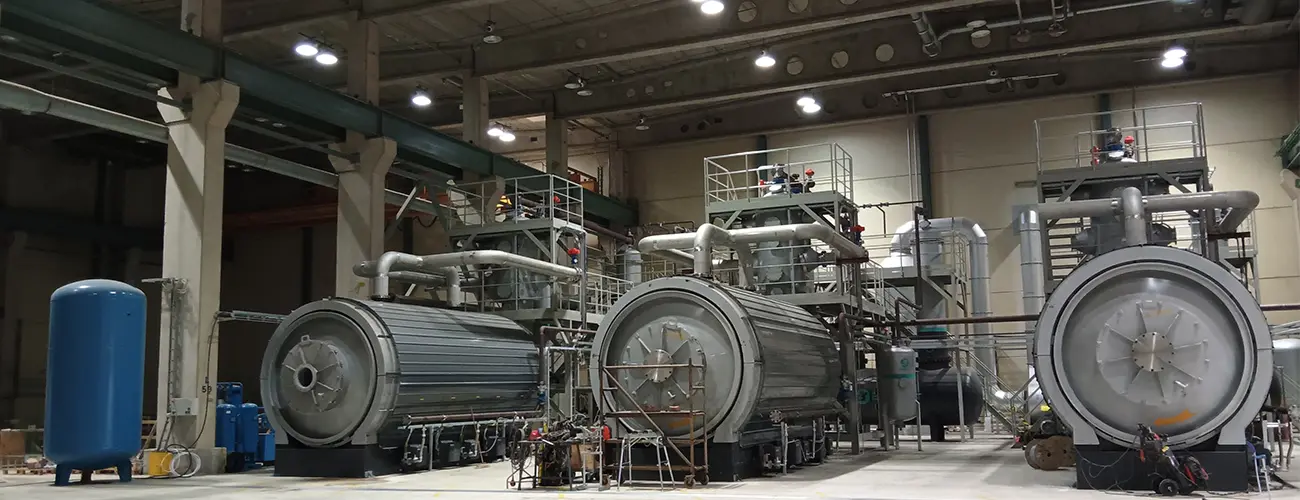

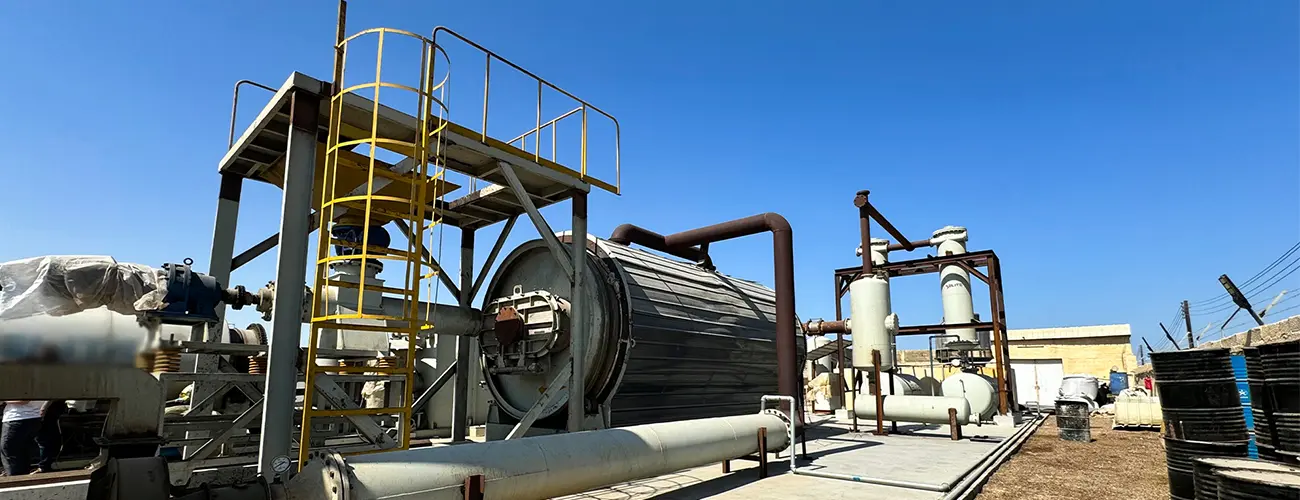

Small pyrolysis machine – BLJ-16 is a cost-effective solution for efficient waste management. Through pyrolysis technology, BLJ-16 can realize resource utilization and treatment of waste such as plastics, oil sludge, and tyres. The end products such as pyrolysis oil and carbon black obtained by the machine can be applied in many fields. At present, small scale pyrolysis equipment has become the choice of many investors for waste recycling projects.

What is Small Pyrolysis Machine?

Small pyrolysis machine uses an intermittent production mode of “one furnace per day”. Each batch of raw materials (such as plastic, oil sludge and tyre) undergo pyrolysis reaction for a specific time. After the reaction stage is over, the overall operation of BLJ-16 enters the cooling stage. Finally, discharge by-products and reload new materials for the next cycle. Typically, small scale pyrolysis equipment includes feeding system, reactor, condenser, discharger and waste gas treatment system.

BLJ-16 Pyrolysis Plant: Solving Plastic, Tyre & Oil Sludge Processing Challenges

While different feedstocks bring distinct processing challenges, our BLJ-16 small pyrolysis plant incorporates specialized upgrades to overcome typical bottlenecks and unlock higher profitability:

Plastic Waste

3000 tons/year processing capacity

Applies catalytic dewaxing technology to break down heavy wax components during pyrolysis, effectively preventing wax oil condensation and blockage for stable, continuous operation.

  • Increases production efficiency by 200%
  • Ensures smooth handling of plastic-rich feedstocks
  • Waste Tyres

    4000 tons/year processing capacity

    Employs precise thermal control during pyrolysis to reduce TPH in carbon black, followed by grinding and pelletizing to upgrade it into high-value N330/N550/N660 grades.

  • Increases carbon black surface area and market value, boosting up to 5 times on ROI
  • Enhances oil yield consistency across batches
  • Oil Sludge

    6000 tons/year processing capacity

    Combines decanter centrifuge + thermal washing + pyrolysis technology to remove impurities and reduce thermal resistance, significantly lowering the risk of coking and improving reaction stability.

  • Improves processing throughput by 200%
  • Enhances phase separation and oil yield
  • Beston Small Pyrolysis Machine

    Basic Parameters of Beston Small Pyrolysis Machine for Sale

    ModelBLJ-16 StandardBLJ-16 TDUBLJ-16 WAXBLJ-16 CATBLJ-16 ULTRA
    ManufacturerBESTONBESTONBESTONBESTONBESTON
    Time to Market20132013202220222022
    Motor BrandChinese brandChinese brandChinese brandChinese brandABB Explosion-proof
    Suitable Raw MaterialsWhole tire<120cm;
    Tire blocks<15cm;
    Oil soil with liquid content<30%
    Oil sludge; Landing oil sludge; Drilling waste; Tank bottom oil sludgeWaste plastic bales
    (Max.0.9*0.9*1.6m)
    Waste plastic bales
    (Max.0.9*0.9*1.6m)
    Waste plastics; Tires; Oil sludge
    Input Capacity (Max.)Whole tire <120cm or Tire blocks<15cm: 10-12t/batch
    Sidewall removed tire: 15-16t/batch
    Oil soil: 16-18t/batch
    16-18t/batch8-10t/batch8-10t/batchWaste plastic bales: 8-10t/batch
    Whole tire <120cm or Tire blocks<15cm: 10-12t/batch
    Sidewall removed tire: 15-16t/batch
    Oil sludge: 16-18t/batch
    Working MethodBatchBatchBatchBatchBatch
    Final Oil QualityPyrolysis oilPyrolysis oilPyrolysis oil with waxPyrolysis oil with naphthaPyrolysis oil
    Pyrolysis oil with wax or naphtha
    Reactor MaterilQ345R Boiler steel304 Stainless steel304 Stainless steel304 Stainless steel304 Stainless steel
    Reactor Life Span (Years)2-35-85-85-85-8
    Guarantee (Months)1212121212
    Delivery Time (Calendar Days)4560606090
    Land Space Required (L*W*H*m)33*13*833*13*833*13*833*13*833*26*8
    Packing1*40FR+3*40HQ1*40FR+3*40HQ1*40FR+3*40HQ1*40FR+3*40HQ+1*20GP1*40FR+8*40HQ
    Installation Period (Calendar Days)4545454560

    From Trash to Treasure: Raw Materials for Small Pyrolysis Plant

    Waste Plastic

    Oil Sludge

    Waste Tyre

    Waste Plastic for Small-scale Pyrolysis Machine
    • Source: waste plastic recycling center management, urban domestic waste disposal, plastic product manufacturers, etc.
    • Type: pure plastic, such as PE, PP, PS, ABS, etc. Waste plastic products, such as plastic packaging, plastic cables, agricultural mulch, etc.
    • Pyrolysis Products: pyrolysis oil, carbon black, syngas.

    Note:

    • PET and other oxygen-containing plastics do not produce oil during pyrolysis. Moreover, such plastics release oxygen during pyrolysis, which does not meet the anaerobic reaction conditions of plastic to oil machine.
    • PVC and other chlorine-containing plastics produce hydrogen chloride after pyrolysis, which corrodes pipelines. In addition, the finished oil contains chlorine. Burning this oil releases dioxins, a carcinogen.
    Oil Sludge for Small-scale Pyrolysis Machine
    • Source: Oil drilling, transportation and refining, ship repair and manufacturing, oil waste management.
    • Type: Oil-based drilling cuttings, oil-contaminated soil, oil tank bottom sludge, refinery sludge and other industrial oily wastes.
    • Pyrolysis Products: pyrolysis oil, sand, syngas.

    Note:

    • Oil sludge has complex composition. We recommend that customers send samples for testing and then confirm the process plan of small oil sludge pyrolysis plant.
    Waste Tyre for Small-scale Pyrolysis Machine
    • Source: Tire recycling, fleet transportation, heavy industrial machinery production.
    • Type: Passenger tyre, commercial tyre, OTR tyre.
    • Pyrolysis Products: pyrolysis oil, carbon black, steel wire, syngas.

    Usage of End Products Obtained from Small Scale Pyrolysis Unit

    The end products produced by small pyrolysis machine of each raw material are different. In particular, the reaction of each raw material produces syngas. It is reused in the pyrolysis reaction. The remaining products have a wide range of applications in various fields.

    Pyrolysis Oil from Batch Pyrolysis Machine

    Pyrolysis Oil

    • Used as alternative fuel for energy-intensive factories such as steel mill, cement plant, and power plant;
    • Further distilled into non-standard diesel with higher commercial value for sale;
    • Non-standard diesel is used as fuel for heavy oil generator sets to generate electricity.
    Carbon Black from Batch Pyrolysis Machine

    Carbon Black

    • Further processed into higher quality carbon black, such as N330 carbon black;
    • Used as an additive for asphalt mixtures, printing inks, black dyes, paints, etc.
    Steel Wire from Batch Pyrolysis Machine

    Steel Wire

    • Reused in tire production;
    • Reprocessed into other metal products for sale.
    Sand from Batch Pyrolysis Machine

    Sand

    • Used to produce permeable bricks;
    • Reprocessed into oil well anti-collapse materials.

    Working Process Description of Small Pyrolysis Machine


    01Preheating (3h)

    Use a burner to preheat the small pyrolysis reactor. Generally, natural gas, diesel, and heavy oil are used as preheating fuels.

    02Feeding (2-3h)

    Load the raw materials into the small pyrolysis reactor. Customers can choose different feeding methods according to the raw material size and production requirements.

    03💡Reaction (7-11h)

    When the temperature of the reactor reaches 180℃, the reaction begins. When the reaction reaches 280-350℃, the reaction tends to stabilize. The entire reaction involves the following processes:

    • Pyrolysis: Under the thermal desorption process, high molecular weight hydrocarbon polymers in the raw materials undergo chain scission into small molecule gaseous hydrocarbons. These high-temperature gaseous hydrocarbons are oil gas.
    • Condensation: Oil gas enters the manifold first. After separating the heavy oil and impurities, the high-temperature oil gas enter the condenser. Condensable components are condensed to form pyrolysis oil, which is collected by the oil storage tank.
    • Syngas Reuse: Non-condensable components in oil gas, namely syngas, first enter the water seal for purification. Later, it enters the combustion system through the pipeline as fuel to provide energy for the reaction.
    • Exhaust Gas Discharge: Flue condenser and spray tower cool down and remove dust from exhaust gas. Finally, chimney discharges the exhaust gas.

    04Cooling (5-6h)

    When the oil yield decreases and the oil turns dark brown, the oil extraction process is essentially complete. After the reaction is completed, the equipment is cooled down. This is to prepare for the subsequent discharging.

    05Discharging (2-3h)

    The temperature of the solid residue produced by the reaction is between 300-450℃. It is discharged by the water-cooled screw conveyor to cool down for collection.

    Diverse Configuration Scheme for Batch Pyrolysis Plant

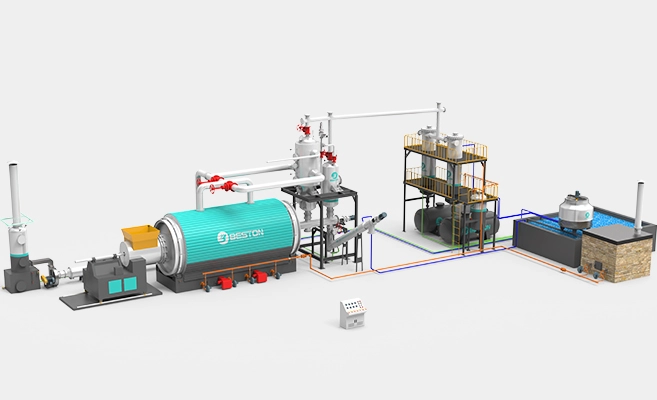

    Small pyrolysis machine adopts flexible component layout and modular design. Therefore, you can customize the configuration according to site conditions and production requirements. For the supporting facilities of different systems, you can choose additional equipment to expand the pyrolysis production line. By the way, these configuration options are an important part of small pyrolysis plant cost.

    Feeding System

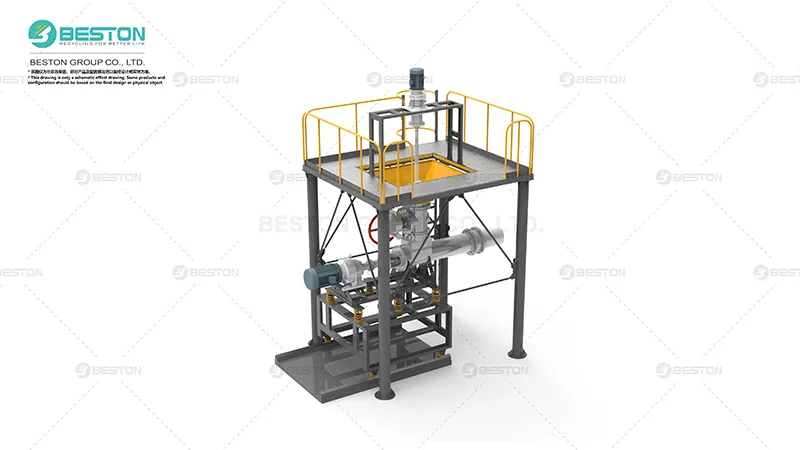

    The feeding system of batch machine can be divided into three categories according to working efficiency: manual, hydraulic and screw feeding:

    Feeding Method Feeding Size Working Efficiency
    Manual less than 1.2m low
    Hydraulic less than 1.2m high
    Screw less than 5cm high

    Furnace Material

    The main furnace of a small scale equipment is the core component for the reaction. Also, it is main factor affecting small pyrolysis reactor price. According to the characteristics of different pyrolysis raw materials, the main furnace needs to be made of different materials. For example, the pyrolysis reaction temperature of plastic is higher, and the high temperature resistance of the material is higher. The following are three commonly used main furnace materials.

    Furnace Material Features Suitable Raw Materials
    310S Stainless Steel Can withstand high temperature of 1035℃;
    High temperature oxidation corrosion resistance;
    Acid corrosion resistance.
    waste plastic
    304 Stainless Steel Can withstand high temperature of 600-700℃ oil sludge, scrap tyre
    Q345R Steel Can withstand high temperature of 450℃ oil sludge, scrap tyre

    Discharging System

    After the reaction is over, the temperature of the solid residue needs to be cooled. The discharge system of the small scale pyrolysis equipment uses a water-cooled screw conveyor to cool the solid residue. You can choose a 1 or 3 screw conveyor. The latter has a shorter cooling time for the main furnace and faster cooling of the solid residue.

    Discharging Method Furnace Cooling Temperature Cooling Time Solid Residue Temperature
    1 screw conveyor 50-60℃ long 100-150℃
    3 screw conveyors 150℃ short 50-80℃
    Batch Pyrolysis Plant with 1 Water-cooled Screw Conveyors
    1 Water-cooled Screw Conveyors Discharging System
    Batch Pyrolysis Plant with 3 Water-cooled Screw Conveyors
    3 Water-cooled Screw Conveyors Discharging System

    Additional Equipment for Small Pyrolysis Machine

    Catalytic Tower

    For small plastic pyrolysis machine, catalytic tower can solve the problem of wax oil blocking pipeline during pyrolysis process. Thus, it improves reaction efficiency and oil quality.
    Catalytic Tower for Small Pyrolysis Plant

    Tyre Shredder

    For tyre pyrolysis machine equipped with screw feeding, tyre need to be processed into rubber powder. The equipment can achieve tyre cutting, crushing and steel wire removal, etc.
    Tyre Shredder for Small Pyrolysis Plant

    Oil Distillation Equipment

    This equipment further purifies the pyrolysis oil through distillation reaction. The pyrolysis oil is converted into non-standard diesel, which has higher utilization and commercial value.
    Oil Distillation Equipment for Small Pyrolysis Plant

    High-end Exhaust Gas Treatment System

    In order to meet the high emission standards in some regions, we provide high-end exhaust gas treatment equipment. The exhaust gas treated by this equipment can meet EU standards.
    High-end Exhaust Gas Treatment System for Small Pyrolysis Plant

    Small Pyrolysis Plant Vs. Continuous Pyrolysis Plant

    Degree of Automation

    • A fully continuous pyrolysis plant operates in a continuous manner. This includes continuous feed, uninterrupted fuel output and seamless soot discharge. There’s no requirement for shutdown during pyrolysis reactor cooling and carbon black slagging. This enables sustained operation for a span of 20-30 days without any interruption.
    • For small pyrolysis unit, the process starts with the feed. Subsequently, the heating initiates the conversion of the oil vapor into fuel oil. Subsequently, the pyrolysis reactor is cooled. Finally, carbon black slagging is carried out. Each process must start after the previous process is complete.

    Pretreatment of Raw Materials

    • The continuous type machine handles materials like tires, rubber, and plastics. These materials must be in a clean state, and they need to undergo shredding initially. For instance, you must crush tires into 5mm rubber particles devoid of steel content. This ensures seamless material input and output, facilitating the uninterrupted operation of the continuous plant.
    • The small pyrolysis machine doesn’t demand specific raw material conditions. Therefore, you can directly feed whole tires or waste plastic into the reactor. The need for cutting, cleaning, or screening is not necessary. The final feed size is determined according to the furnace door size.

    Beston Batch Pyrolysis Plant

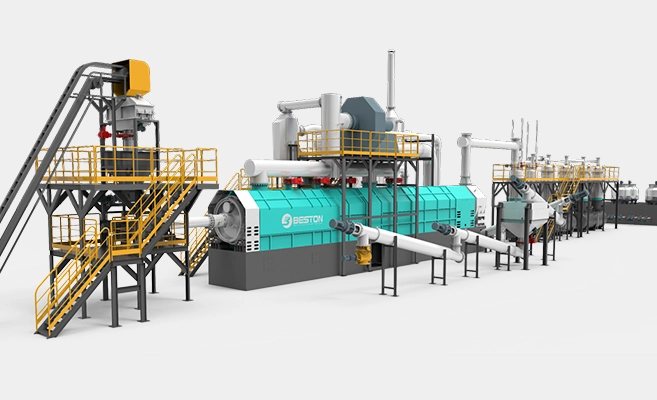

    Beston Continuous Pyrolysis Plant

    Cutting-edge Technology of Beston Small Scale Pyrolysis Plant

    Nitrogen System

    The function of the nitrogen system is to introduce nitrogen for gas replacement before ignition and discharge. Through nitrogen replacement, the residual combustible oil gas in the reactor can be effectively removed. This can prevent the flash explosion of the main furnace, thereby ensuring the safe and stable operation of the small pyrolysis machine.

    Hot Air Heating System

    Compared with burner heating, hot air heating system provides a more uniform heating effect. In addition, the temperature control of the system is more precise. Most importantly, the hot air heating system can realize the recycling of waste heat. The system can save 20-30% of energy consumption. This significantly improves energy efficiency and environmental benefits.

    Floating Seal Technology

    The floating seal technology adopts a sealing method that combines carbon fiber and high-temperature soft filler. Compared with the traditional graphene packing sealing technology, this combined sealing form has high temperature resistance, corrosion resistance and wear resistance. This technology can stably guarantee the sealing of pyrolysis process for a long time.

    Flare System

    Excess syngas may cause safety hazards of system overpressure and storage. Emergency incidents such as power outages that may occur during equipment operation. To prevent these potential safety hazards, the flare system can be quickly activated in the event of pressure or power abnormalities. This ensures the safe discharge of syngas and prevents system overpressure.

    Small Pyrolysis Machine Creates Diversified Value for Investors

    Economic Benefit by Small Pyrolysis Plant

    Economic Benefit

    • As the global demand for clean energy and alternative materials continues to increase, pyrolysis end products such as pyrolysis oil, carbon black, are highly competitive in the market. This ensures a stable sales channel and profitable pyrolysis projects.
    • Small scale pyrolysis equipment usually have a shorter investment return cycle, and investors can see economic benefits in a shorter period of time. This reduces investment risks and ensures the long-term stable operation of the project.
    Sustainability Promotion by Small Pyrolysis Plant

    Sustainability Promotion

    • Small scale machine significantly reduces the landfill and incineration of waste. This can not only effectively reduce the emission of harmful substances, but also the pollution risk of natural resources. This plays a positive role in the protection of the ecosystem.
    • Through the application of advanced pyrolysis technology, the machine plays a key role in energy saving and emission and promoting resource recycling. This conforms to the strategic goals of global environmental protection and sustainable development.
    Social Influence by Small Pyrolysis Plant

    Social Influence

    • Operation of the pyrolysis project drives the development of local related industrial chains. The entire industrial chain ranges from supply chain to product processing, and then to sales and services. This can also provide a large number of employment opportunities.
    • As the core of the emerging industry, the small pyrolysis machine has attracted a large number of investments and support from related industries and local governments. This industrial structure optimization enhances the diversity of the local economy.

    Market Prospects of Small Pyrolysis Machine in Different Regions

    Small Pyrolysis Plant in Europe

    The main types of waste in Europe are plastics and oil sludge. The recycling status of these wastes in Europe has the following characteristics:

    • Strict Waste Regulatory: European countries have a strict regulatory system for waste disposal. Taking the plastic ban as an example, many countries ban the use of disposable plastic products, further promoting the recycling of plastic waste.
    • Government Support: The government implements policies to support recycling projects. It also encourages innovative waste treatment facilities such as intermittent pyrolysis plants through large amounts of funding.
    • Sustainable Transformation: More and more European companies regard sustainable development and circular economy as an important part of their corporate strategy. They actively seek new methods of waste treatment and recycling.

    Therefore, the prospects of small pyrolysis machine, especially plastic to fuel machine in the European market are very broad. Pyrolysis machines can effectively process wastes such as plastics and oil sludge, which meets the European market’s demand for efficient and environmentally friendly waste treatment technology. The following are successful cases of Beston Group’s pyrolysis projects in Europe:

    Small Pyrolysis Plant in Middle East & Africa

    The main types of waste in these regions are oil sludge and tires. The current status of waste recycling projects in the Middle East & Africa is as follows:

    • Lack of Recycling Facilities: Due to the lack of professional waste recycling technology and corresponding facilities, more and more resources are being invested in the construction of waste recycling infrastructure.
    • Strengthened Policy Support: Although some countries still have a long way to go in terms of waste recycling policies, more and more countries are beginning to formulate and implement more systematic waste management and recycling policies.
    • Economic Opportunities Emerge: These regions have great potential for economic development. Increasing industrial activities and urbanization have driven the demand for efficient waste treatment technologies.

    Currently, recyclers in these regions are in the initial stage of investing in pyrolysis projects on a small scale. In other words, it brings great potential for future project expansion. Thus, small scale pyrolysis unit is currently becomes a key option for solving waste disposal problems in these regions. The following are pyrolysis projects carried out in these regions:

    Small Pyrolysis Plant in Asia

    Asia is now facing the challenge of sustainable recycling of plastics, oil sludge and tires. The background of the construction of waste recycling projects in the region is as follows:

    • Waste Accumulation: Rapid economic growth and urbanization in many Asian countries have led to a large amount of waste generation.The many environmental problems caused by waste accumulation have attracted attention from many parties.
    • Improving Recycling System: Many Asian countries have made significant progress in waste recycling in recent years and established a relatively complete waste recycling system. All countries use market incentives to promote the development of waste resource utilization.
    • Recycling Awareness Awakening: As the concept of sustainability continues to permeate, the environmental awareness of the public and enterprises in Asian countries has gradually increased. More and more investors are committed to waste recycling projects.

    The Asian market has great potential for small pyrolysis machines. Rapid urbanization and large amounts of industrial waste have driven the demand for efficient waste treatment technology. Countries are also gradually realizing the importance of waste management and ecological protection. The following are successful cases of Beston Group‘s pyrolysis projects in Asia:

    Profit Analysis of Small Scale Pyrolysis Unit

    BLJ-16 Plastic Pyrolysis Project in South America
    IntroductionAccording to the market data of South America, the estimated ROI report, the various expenses are as follows:
    ItemDetailsUnitUnit price/USDQuantityAmount/USDTotal amountRemark
    Fixed Investment CostEquipmentBLJ-16Set169650.001.00169650.00Supporting high-end exhaust dust removal and 304 stainless steel main furnace material
    TransportationFrom China to Santa Marta portSet23362.001.0023362.00Frame Delivery should through
    Hamburg, then deliver to Czech.
    Customs tax16%Set27144.001.0027144.00
    InstallationBeston technician's salaryDay150.0050.007500.00
    Round -trip airticketsEa5200.002.0010400.00
    VisaEa3000.001.003000.00
    Local laborDay20.006.00120.004 labors are needed
    MaterialsInstallation materials readySet5200.001.005200.00Foundation, pipe, etc.
    LicenseEnvironmental, firefighting, etc.Set2000.001.002000.00
    Workshop10001000.000.008 years
    US$248,376.00
    Operating CostRaw materialsplasticTon20.008.00160.00
    Water/0.0132.000.026
    Electricity/KWH0.22562.00123.6418 hours per day
    FuelPyrolysis oilkg150.000.00
    Labor/People6.0020.00120.00
    Maintenance/Day20.001.0020.00
    Depreciation8 yearsDay80.001.0080.00
    Tax19%Day497.041.00497.04
    US$1,000.71
    End Products PricePyrolysis oil70%Ton4805.452616.00
    Subsity/Ton///
    US$2,616.00
    Daily IncomeUS$1,615.29
    Monthly IncomeWorking dayDay25US$40,382.25
    Yearly IncomeWorking dayDay300US$484,587.00

    Start Your Pyrolysis Project with Beston Group

    If a small pyrolysis machine piques your interest, consider choosing Beston Group. Because we are professional manufacturer with professional strength and rich experience. If you want to know more about this plant before you purchase, contact us directly, contact us directly. Our project manager will provide professional solutions and designs that meet your needs. Find more information about our pyrolysis projects on LinkedIn.

      Please specify your requirement by referring to the following aspects:

      1-What kind of solution will meet your demand? (Key point)

      2-What kind of material and expected end product are you planning to have? (Right solution begins from material and product)

      3-When is the project supposed to be running? (Key info for A-Z project programming)

      4-Budget for machinery purchasing? (Key info for right model)

      5-Points that you really focus on. (Customized service from our project consultant)

      CONTACT US

      Please Feel Free To Give Your Inquiry In The Form Below.

      Your Message (required):
